Installing Coolant Distributor Housing

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Caustic fluids

Danger of chemical burns
→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ Avoid contact with caustic fluid.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Information

Fit new O-rings and molded seals.
Clean sealing points before fitting.
Coat O-rings and molded seals with Kluber Plus Gel.

Installation is performed in reverse order to removal.

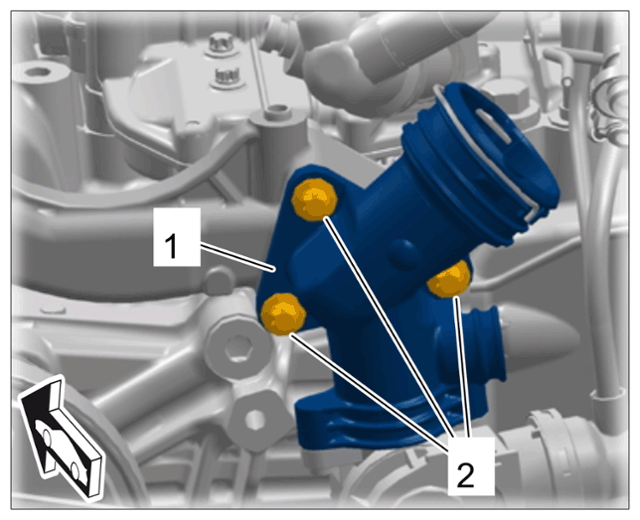

Tighten screws -2- .

> Tightening torque 33 Nm (24 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant connection piece on distributor housing

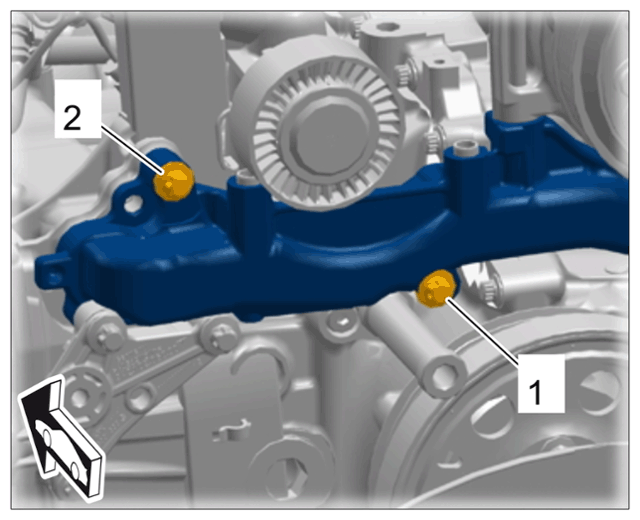

Tighten screw -2- .

> Tightening torque 33 Nm (24 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for distributor housing

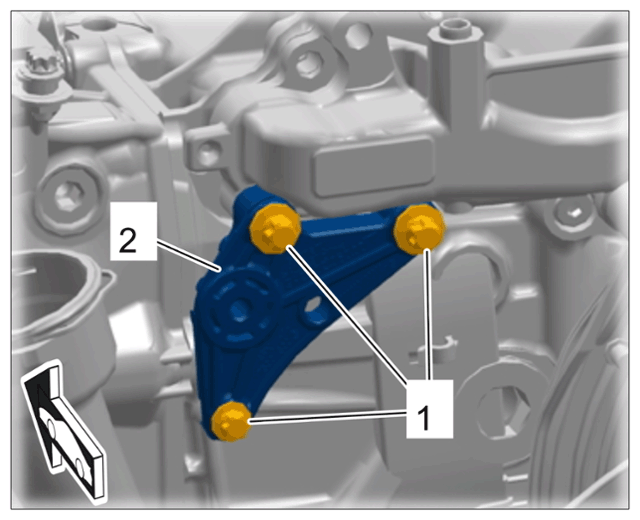

Tighten screws -1- .

> Tightening torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Angled pipe

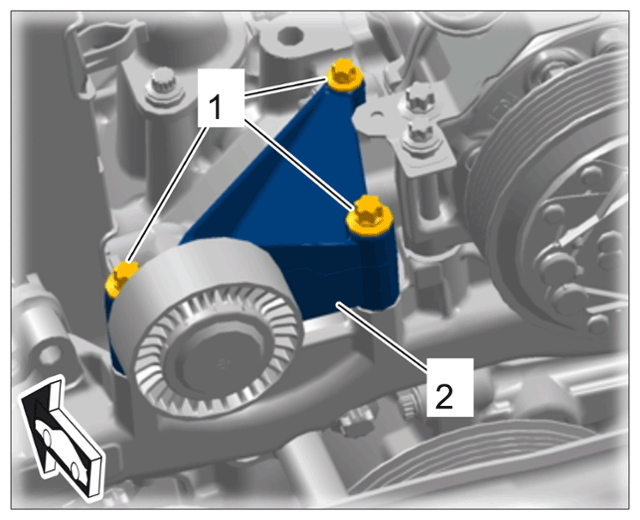

Tighten screws -1- .

> Tightening torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for deflection roller

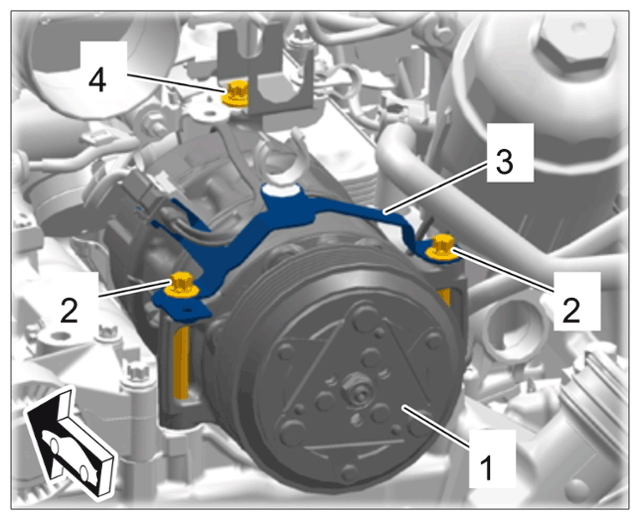

Tighten screws -2 - and -4- .

> Tightening torque 23 Nm (17 ftlb.)

> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air-conditioning compressor
