Removing Coolant Regulator

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Hot fluid
  • Danger of scalding

    → Let the fluid cool down.

    → Wear personal protective gear.

  1. Remove heat shield -1-  .

    Unscrew and remove screws -2-  .

    Remove heat shield -1-  .

    G15488730Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on coolant regulator

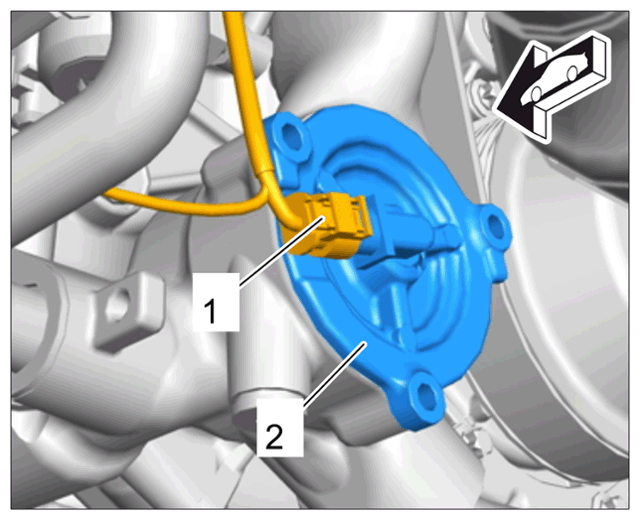

  2. Remove coolant regulator -2-  .

    Pull off cable plugs -1-  .

    Remove coolant regulator -2-  from the coolant regulator housing.

    Collect any coolant that leaks out in a suitable container.

    G15488731Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable plug on coolant regulator

    Information

    If the seal is damaged, the coolant regulator must be replaced.

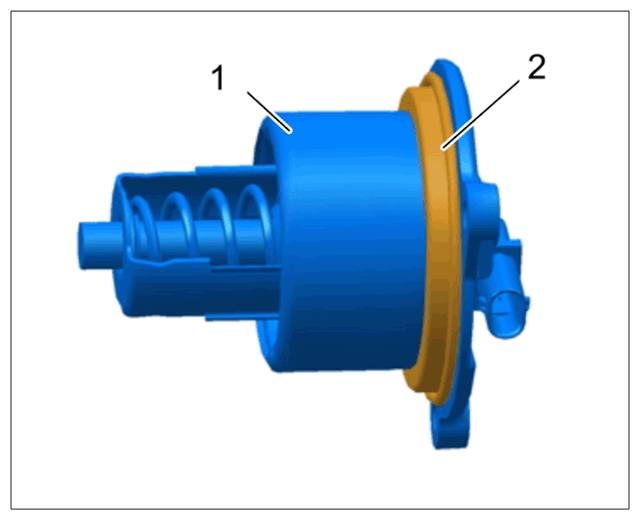

  3. Check the seal -2-  on the coolant regulator -1-  .
    G15488732Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant regulator seal

  4. Clean sealing surfaces.
