Removing Coolant Regulator Housing

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

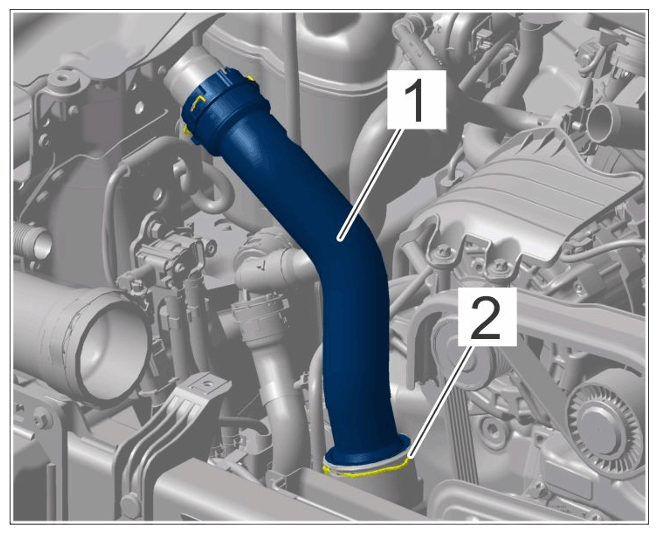

Disconnect coolant hose -1- at the left-hand side of the engine compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left coolant hose

Pull off spring clamp -2- .

Pull off coolant hose -1- .

Insert spring clamp -2- .

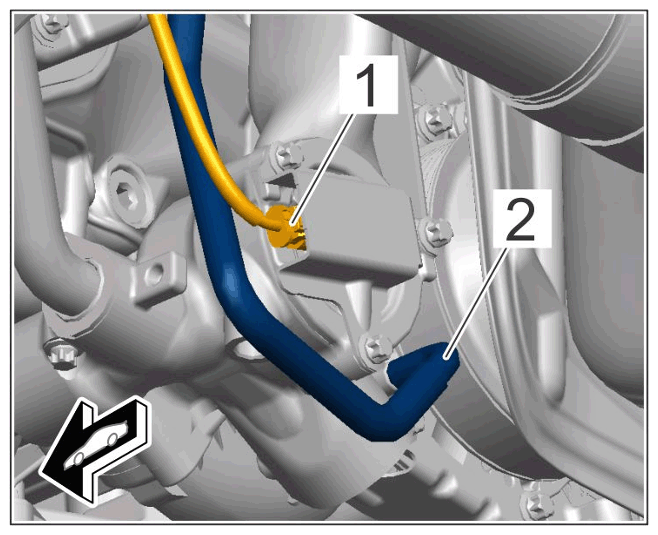

Disconnect cable plugs -1-2- and pull off vacuum line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plugs for coolant regulator and vacuum line on coolant pump

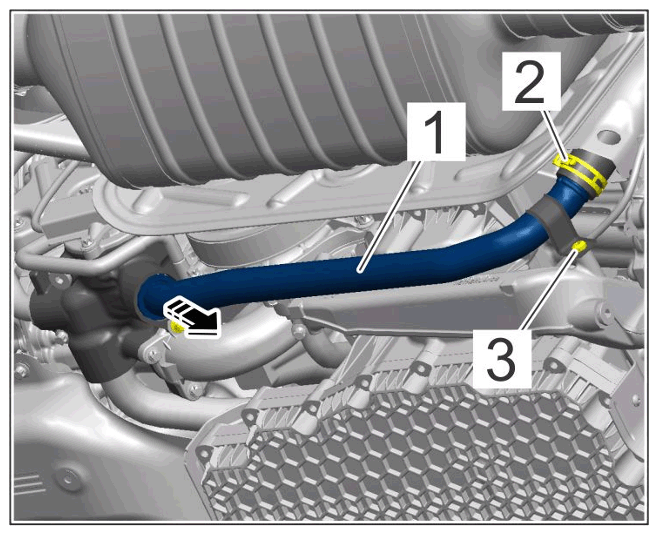

Remove coolant pipe -1- from the coolant regulator housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower coolant pipe

Open spring band clamp -2- and pull off coolant hose.

Unscrew screw -3- on the holder.

Pull coolant pipe off the coolant regulator housing -arrow- . Collect coolant in a clean container.

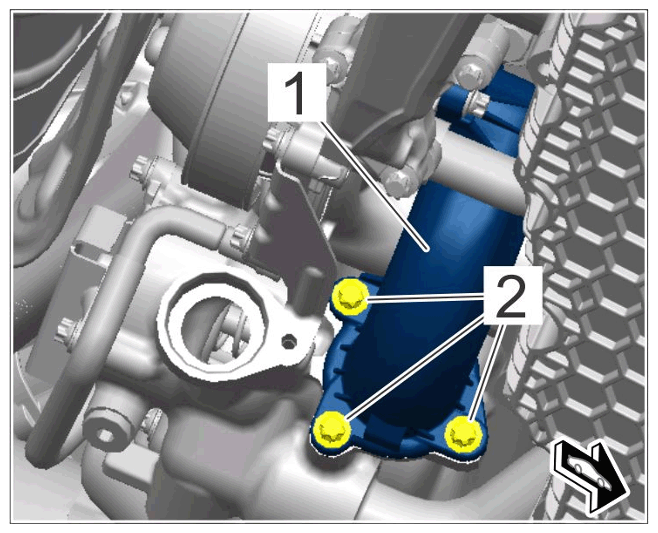

Unscrew screws -2- on the coolant pipe -1- for the coolant pump.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pipe connection on coolant regulator housing

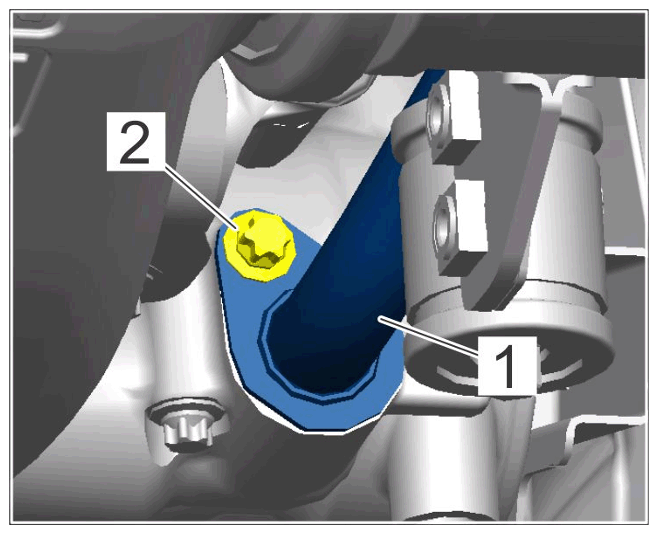

Unscrew screw -2- for coolant supply pipe -1- on the coolant regulator housing and pull off coolant pipe.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant supply pipe

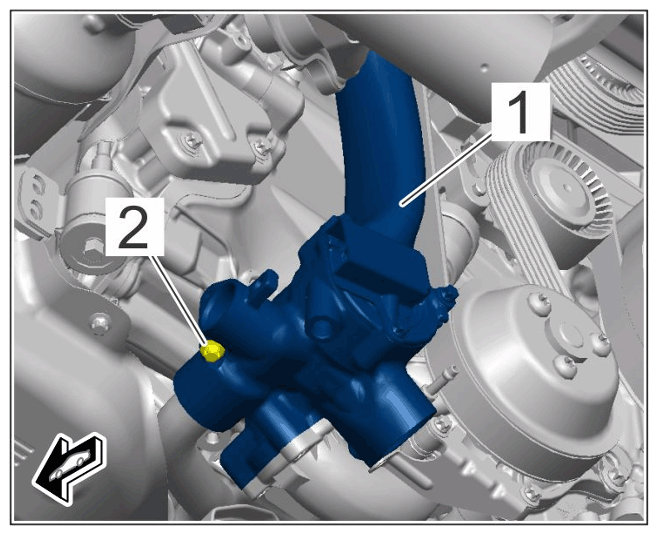

Unscrew screw -2- on coolant regulator housing -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on coolant regulator housing

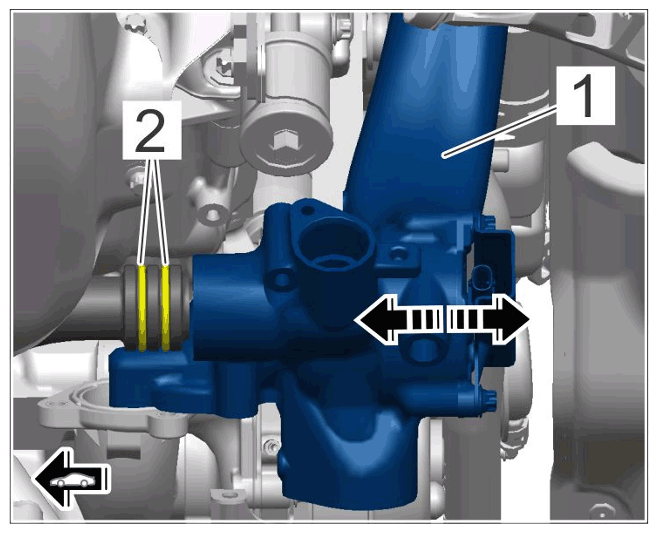

Pull coolant regulator housing -1- off the coolant pipe to the rear -right arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant regulator housing on coolant pipe

Replace O-rings -2- .

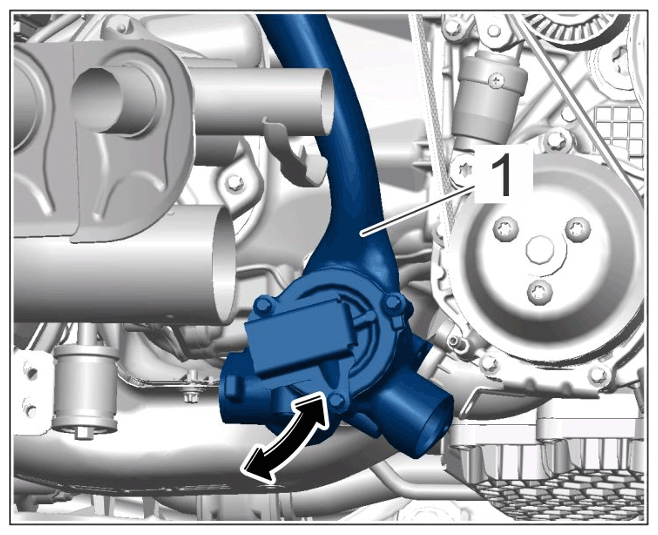

Remove coolant regulator housing -1- by pulling it downwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removal and installation direction
Replace all O-rings and seals.
Clean sealing surfaces.
