Installing Coolant Regulator Housing

Information

Replace seals and O-rings.

Information

To prevent damage to the molded seals, install coolant pipes carefully.

Information

• Coat O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).

1. Install new O-rings and coat them with the prescribed lubricant.

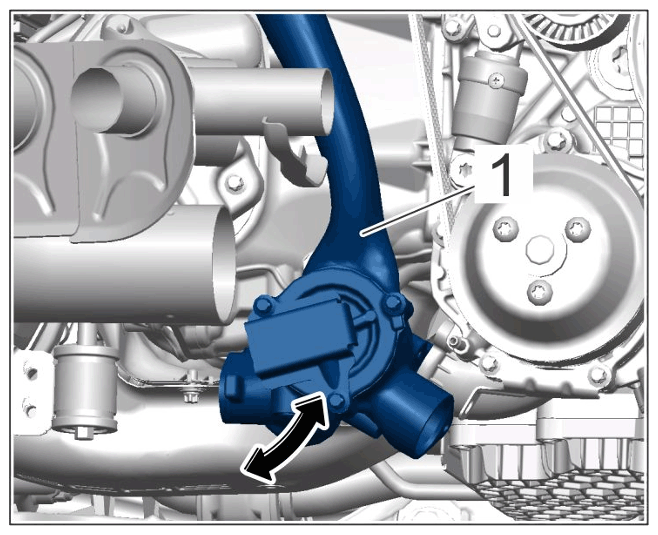

2. Position coolant regulator housing -1-  (-Direction of arrow upwards-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removal and installation direction

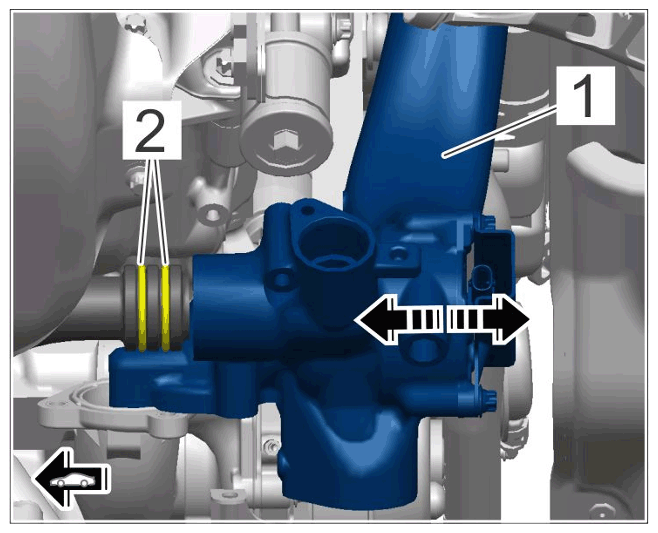

3. Push coolant regulator housing -1-  on the coolant pipe over the O-rings -2-  (-Left in direction of arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant regulator housing on coolant pipe

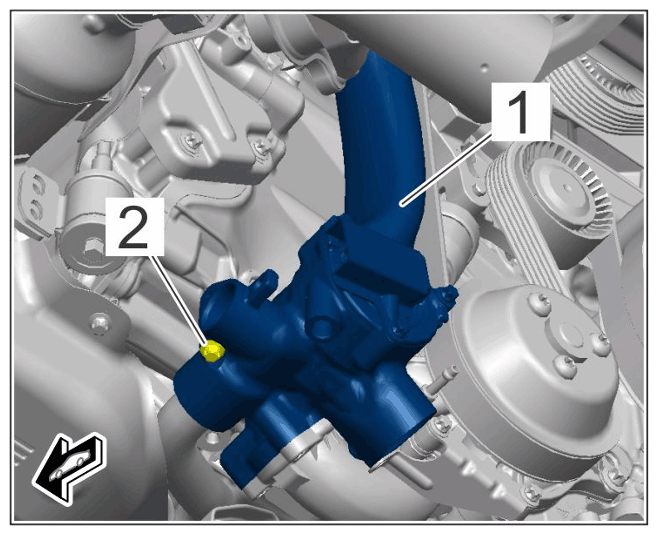

4. Secure coolant regulator housing -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw on coolant regulator housing

   Fit and tighten screw -2-  .

   > Tightening torque 13 Nm (9.5 ftlb.)

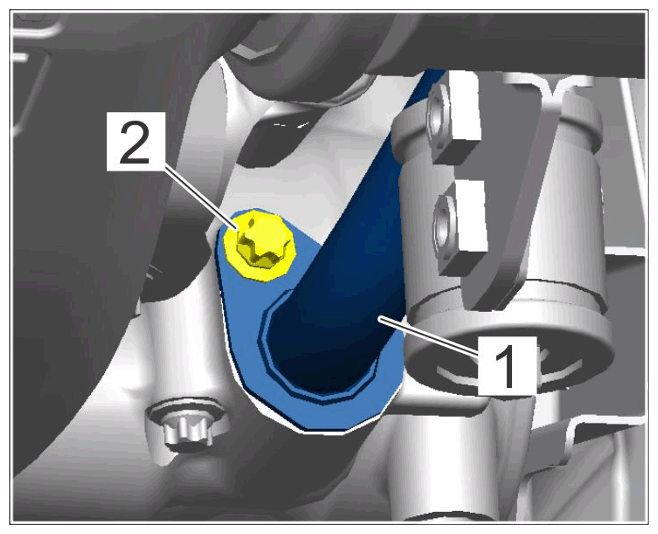

5. Install coolant supply pipe -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant supply pipe

   Tighten the screw.

   > Tightening torque 13 Nm (9.5 ftlb.)

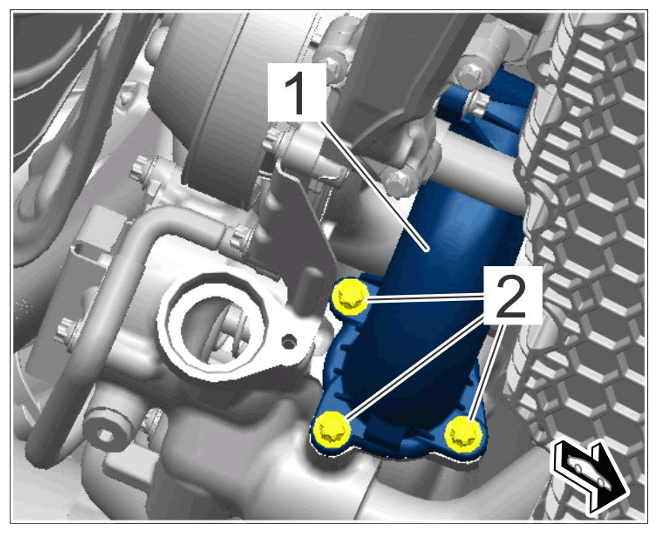

6. Secure coolant pipe -1-  at the coolant pump.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant pipe connection on coolant regulator housing

   Tighten screws -2-  .

   > Tightening torque 13 Nm (9.5 ftlb.)

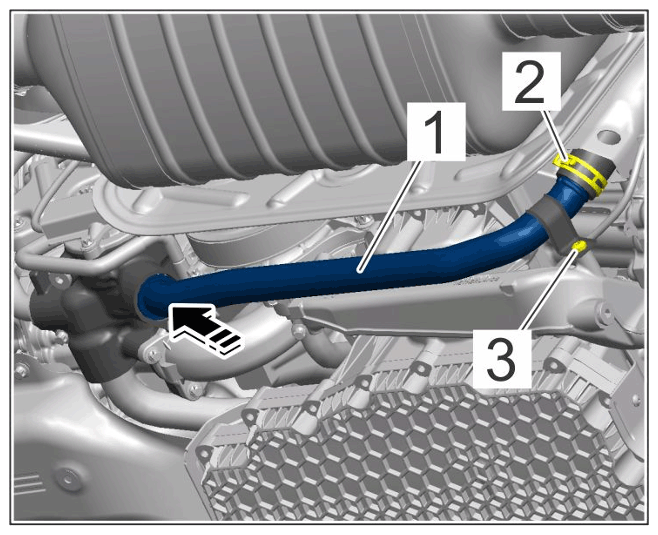

7. Install coolant pipe -1-  at the bottom.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lower coolant pipe

   Fit coolant pipe -1-  on the coolant regulator housing -arrow-  .

   Secure coolant hose with a spring band clamp -2-  .

   Tighten screw -3-  on holder.

   > Tightening torque 10 Nm (7.5 ftlb.)

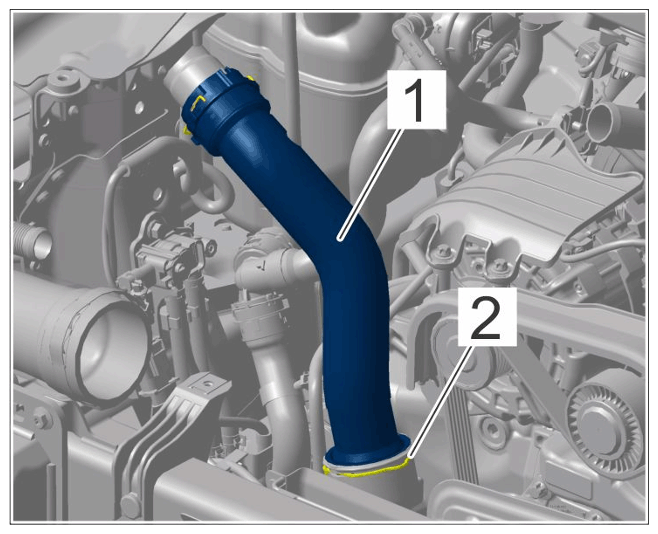

8. Install coolant hose -1-  at the left-hand side of the engine compartment.

   Fit coupling on coolant hose -2-  .

   Check that the coolant hose is fitted securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left coolant hose
