Installing Coolant Pump

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Coat O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.305.39).

Coat new seals with the specified lubricant.

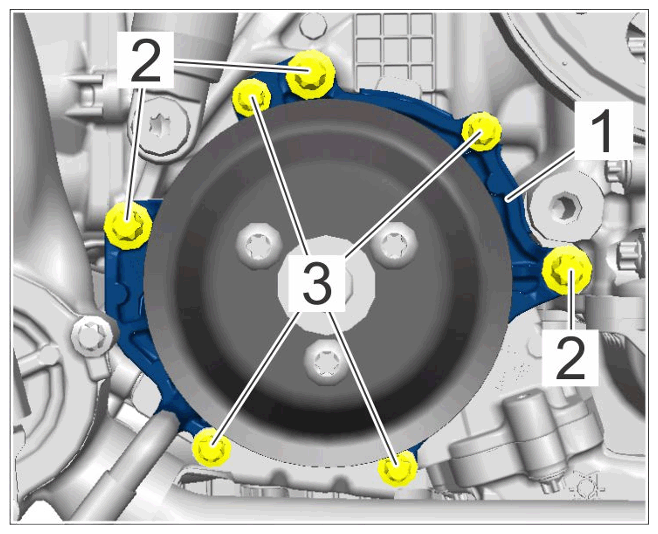

Install coolant pump -1- with pulley.
Insert coolant pump and fit and tighten M8 -2- and M6 screws -3- .

M8 screws: > Tightening torque 33 Nm (24 ftlb.)

M6 screws: > Tightening torque 13 Nm (9.5 ftlb.)

Connect vacuum hose.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pump with pulley

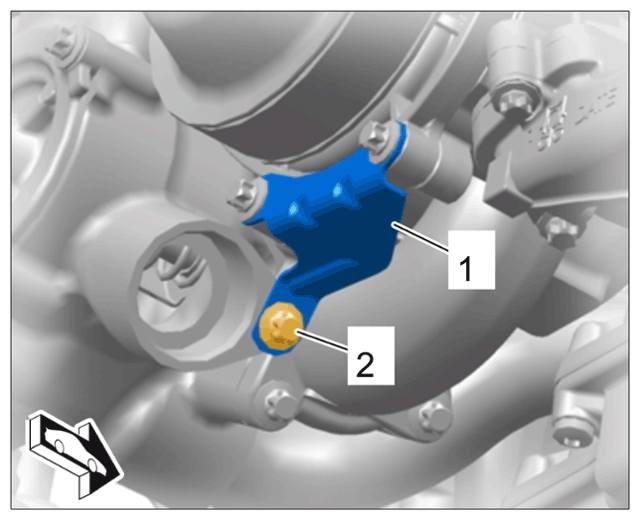

Fit and tighten screw -2- on the coolant pump holder -1- .
> Tightening torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pump holder

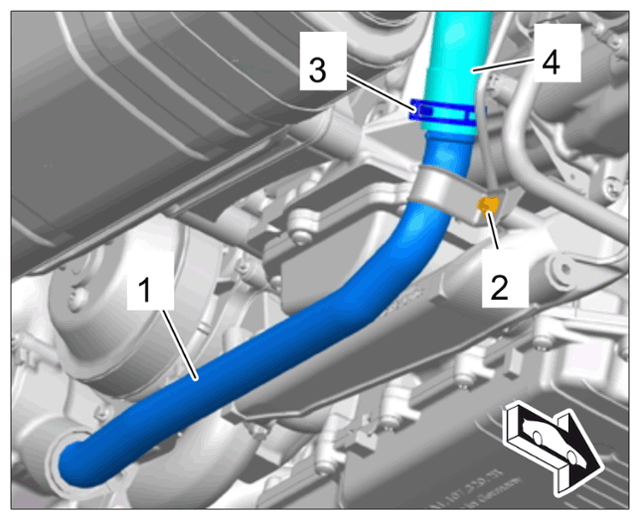

Install coolant pipe -1- .
Install coolant pipe -1- on the coolant regulator housing.

Connect coolant hose -4- and close the spring band clamp -3- .

Fit and tighten screw -2- .

> Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower coolant pipe
