Removing Coolant Pump (With Housing)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing

    → Secure components to prevent them from falling down.

WARNING: Caustic fluids
  • Danger of chemical burns

    → Wear personal protective gear.

    → Ensure that there is good ventilation.

    → Avoid contact with caustic fluid.

    → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Coolant pump with housing

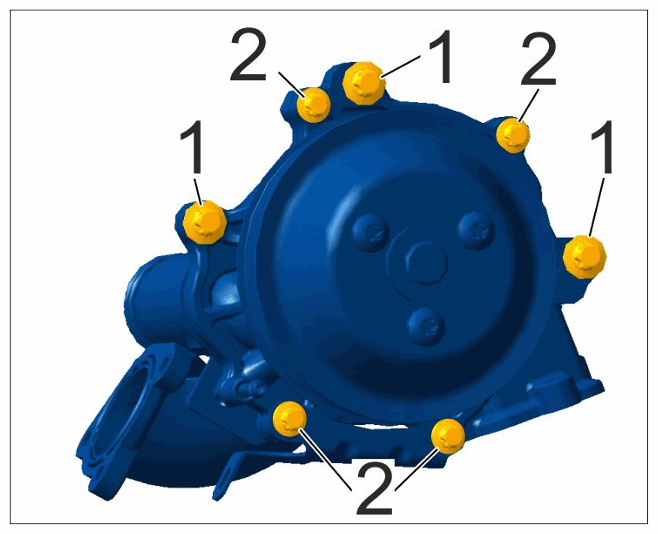

Fig 1: Coolant Pump With Housing Components Location With Torque Specification
G15488695Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pump with housing

1  Screw, M8 x 25 > Tightening torque 33 Nm (24 ftlb.)
2  Screw, M6 x 25 > Tightening torque 13 Nm (9.5 ftlb.)
  1. Remove coolant pipe -1-  from the coolant regulator housing.

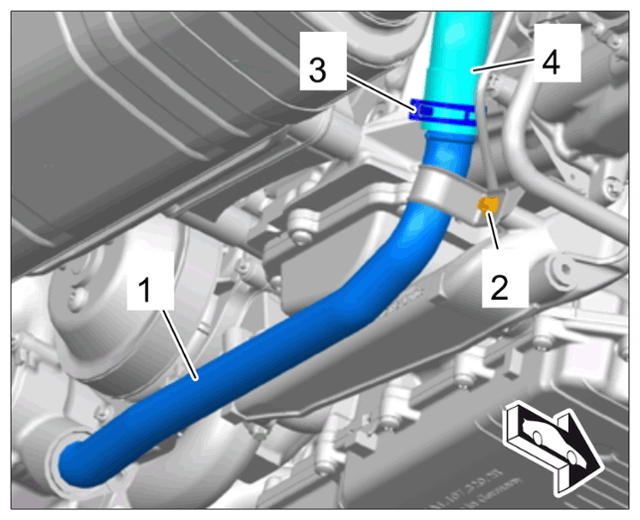

    G15488696Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lower coolant pipe

    Collect emerging coolant in a clean container.

    Unscrew screw -2-  .

    Loosen spring band clamp -3-  .

    Detach coolant hose -4-  .

    Pull coolant pipe -1-  off the coolant regulator housing.

  2. Unscrew screw -2-  on the coolant pump holder -1-  .
    G15488697Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant pump holder

  3. Loosen coolant regulator housing -4-  .

    Disconnect cable plug on coolant regulator.

    Unscrew screws -1 to 3-  and remove.

    Have complete housing -4-  off the coolant line -5-  by pulling it -Arrow-  and swivelling it to the side.

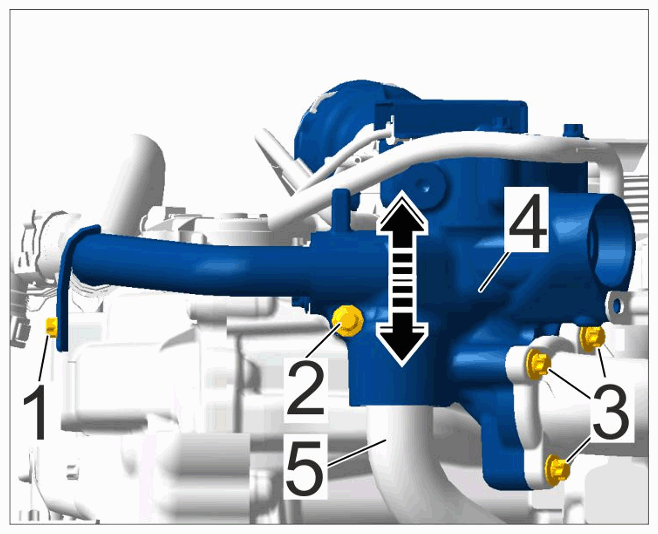

    G15488698Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant regulator housing

  4. Remove coolant guide -1-  .

    Unscrew screws -2-  and remove coolant guide -1-  .

    Replace gaskets during installation.

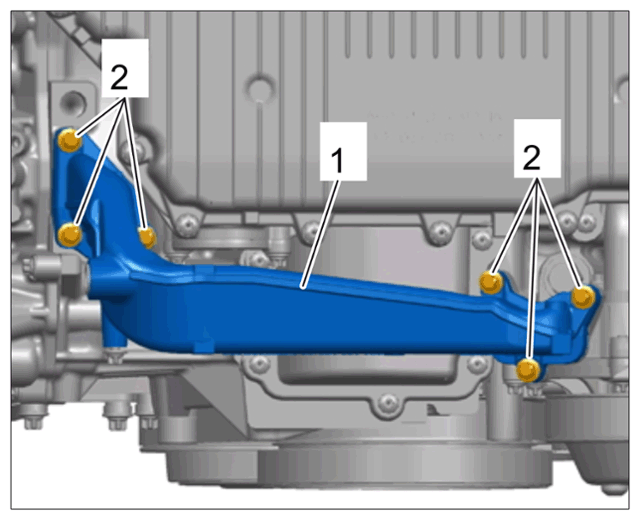

    G15488699Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant guide

  5. Remove coolant pump with housing -3-  .

    Pull off vacuum hose -1-  .

    Unscrew screws -2-  and pull off coolant pump -3-  with housing.

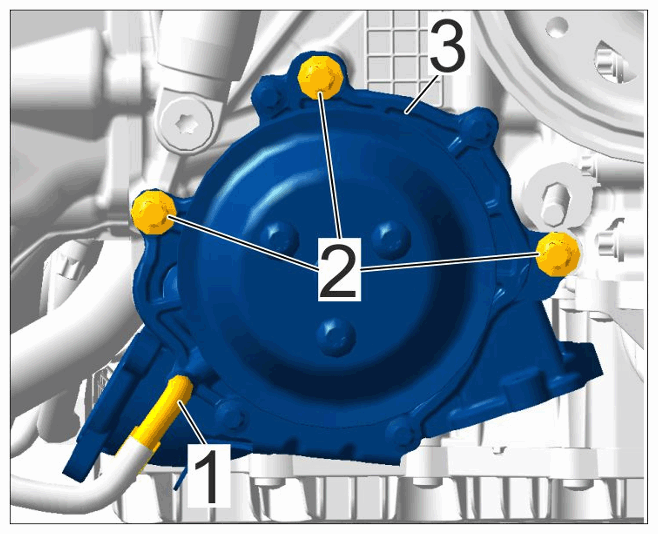

    G15488700Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant pump with housing

  6. Replace gaskets and O-rings during installation, clean sealing surfaces.
