Removing Additional Coolant Pump

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Drain coolant at the connection point for the coolant pipe (left tunnel) -3- .
Open plug-in coupling at the connection point and collect coolant.

Then, re-fit plug-in coupling.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant lines/vent line (connection point in tunnel)
Disconnect coolant hose -2- at the front of the final drive -1- .
Loosen spring clamp and pull off plug-in coupling -3- on the coolant connection piece.

Collect remaining emerging coolant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hose on all-wheel final drive

Remove restraining strap -1- on fuel tank at the left.

Unscrew left screw -2- and disengage restraining strap on the front-axle carrier -5- .

Pull off retaining clip -3- on wiring harness and disconnect cable plug -4- on additional coolant pump.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

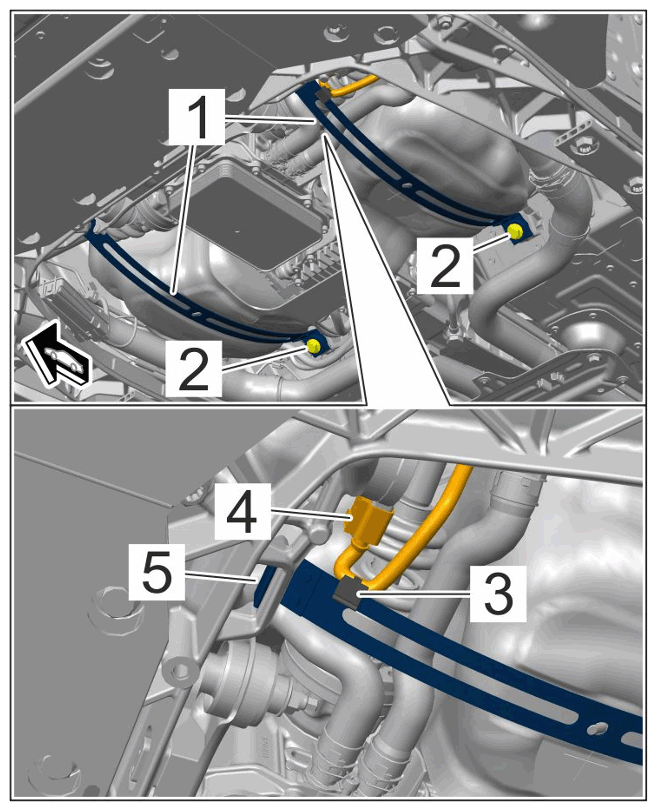

Restraining straps on fuel tank and wiring harness for additional coolant pump

Recommended tools for loosening the screws on the additional coolant pump:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

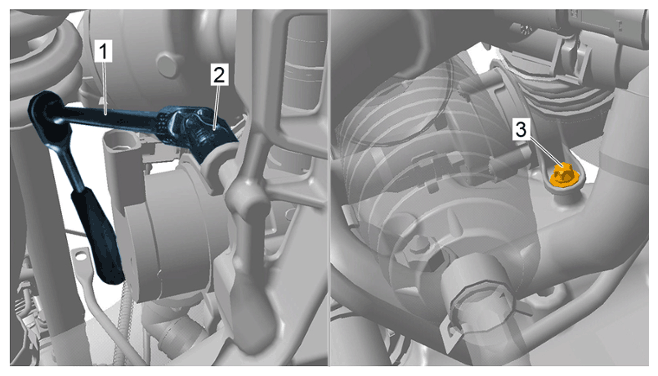

Tools for screws on additional coolant pump

1	1/4-inch extension (shown on the right screw) with ratchet or a small torque wrench
2	1/4-inch flexible-head socket-wrench insert, Torx E10
3	M6 screw, left side

Loosen additional coolant pump -1- with holder -3- .
Unscrew screws -2- using the recommended tool (from the wheel housing side).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump on front-axle carrier
Disconnect coolant hose -1- going to the T-piece on the coolant pipe in the front left wheel housing.
Pull spring clamp -2- for the plug-in coupling into unlocked position and pull off the coupling.

Unclip vent line -3- at the holder.

Loosen holder -4- on the anti-roll-bar mount using a plastic wedge -5- .

Pull coolant hose out of the holder -arrow- .

(Carefully!) compressing the wheel carrier will give you better access for unclipping and clipping in the coolant hose on the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

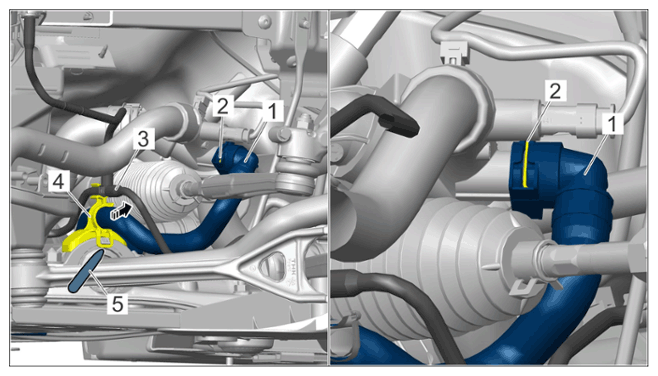

Coolant hose in left wheel housing
Remove additional coolant pump on the front-axle carrier.
