Installing Additional Coolant Pump

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Position additional coolant pump on the front-axle carrier and install coolant hoses. Engage spring clamps and check that the plug-in couplings are fitted securely.

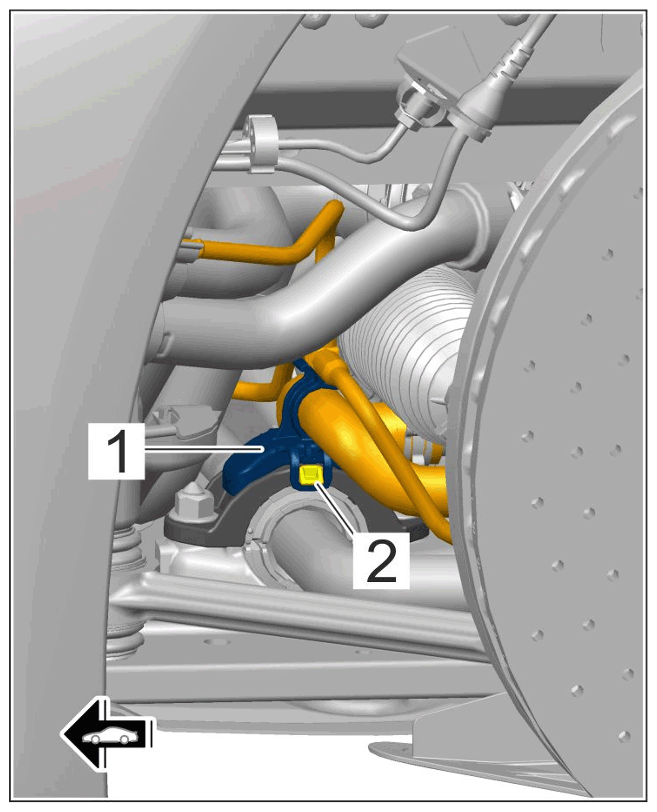

Clip in vent line on the holder -1- and secure the holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line bracket for coolant hose and vent line

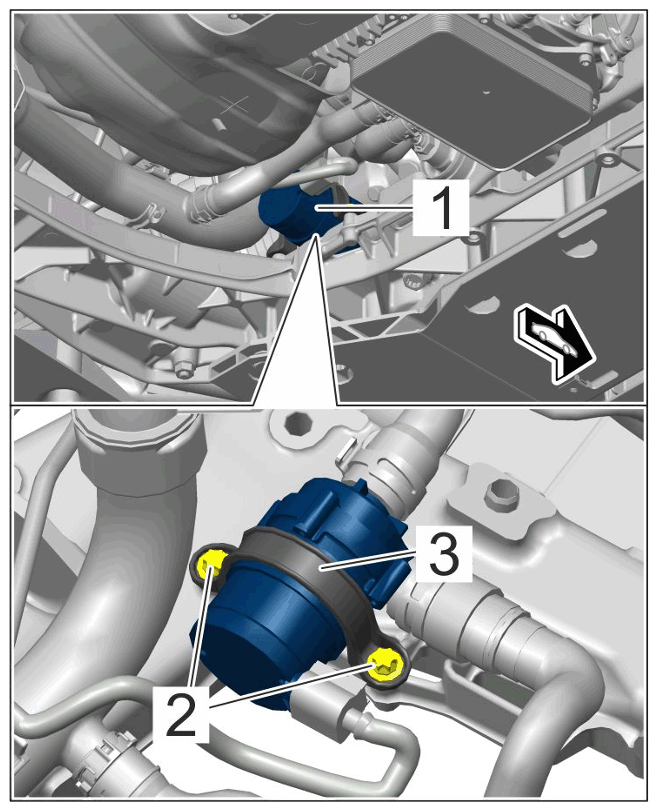

Secure additional coolant pump -1- with holder -3- and tighten screws -2- .
Use 1/4-inch tools as used for removal!

> Tightening torque 8 Nm (5.9 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump on front-axle carrier

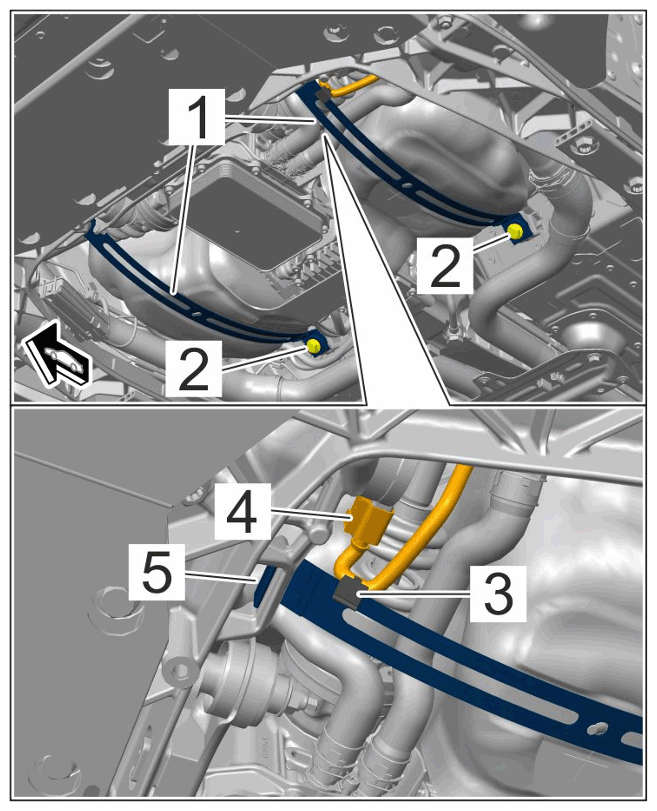

Install restraining strap -1- and connect wiring harness for additional coolant pump.
Connect cable plug -4- on additional coolant pump.

Engage restraining strap -5- and secure with screw -2- . Fit retaining clip -3- .

> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Restraining straps on fuel tank and wiring harness for additional coolant pump

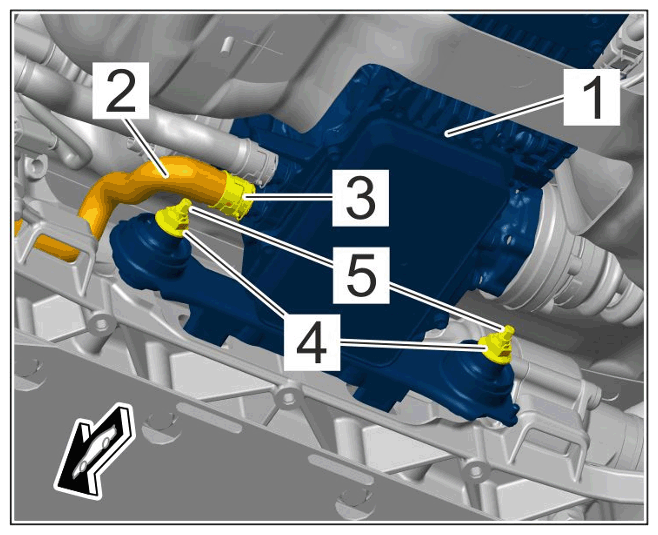

Fit plug-in coupling -3- for front coolant hose -2- on connection piece for the final drive. Check that the plug-in coupling is fitted securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hose on all-wheel final drive
