Installing Reservoir

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Caustic fluids

Danger of chemical burns
→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ Avoid contact with caustic fluid.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

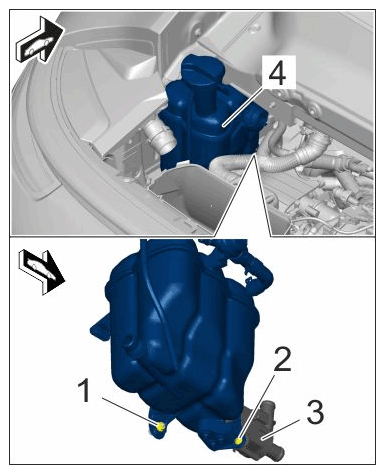

Install reservoir -4- .
Guide the reservoir -4- into the engine compartment and place in installation position.

Clip additional coolant pump -3- into the reservoir -4- and fit and tighten screw -2- .

> Tightening torque 8 Nm (6 ftlb.)

Fit and tighten nut -1- .

> Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for reservoir

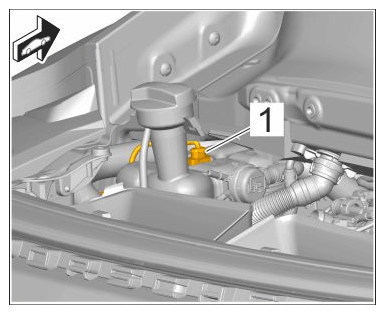

Push on cable plug -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connector for engine coolant level sensor
Secure breather hoses.
Push on breather hoses -2- until they lock with an audible click.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Breather hoses

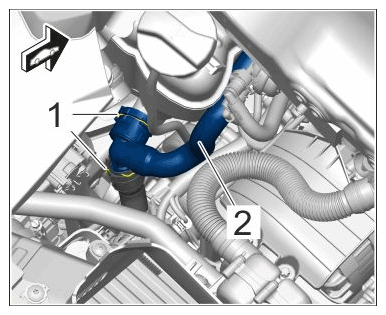

Secure coolant hose on the reservoir.
Connect coolant hose -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hoses on reservoir

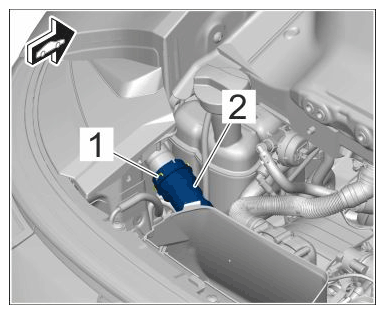

Connect pressure hose -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure hose
