Draining Coolant (Engine)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

WARNING: Caustic fluids

Danger of chemical burns
→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ Avoid contact with caustic fluid.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

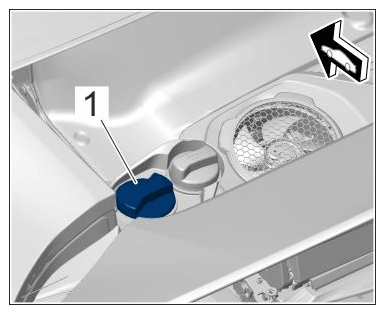

Open cap -1- on the reservoir and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant cap
To collect the coolant, secure a pan on a transmission jack and place it under the drain positions.

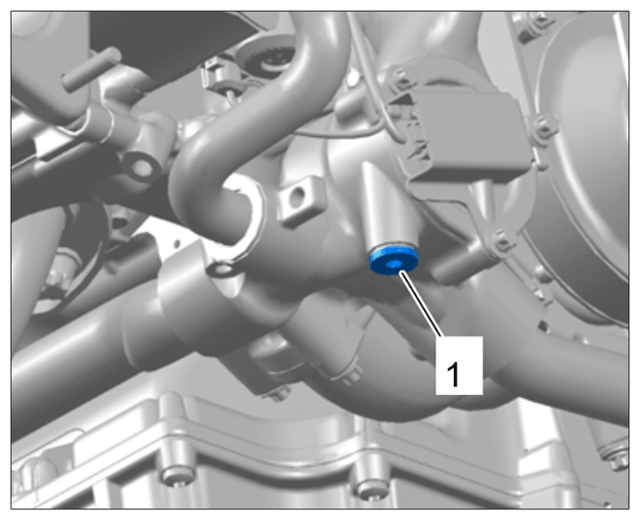

Unscrew drain plug -1- on the coolant regulator housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drain plug on coolant regulator housing

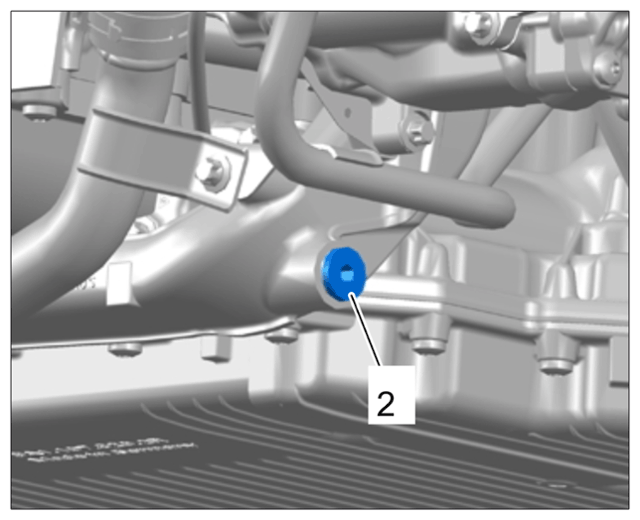

Unscrew drain plug -2- on the coolant guide tube.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drain plug on coolant guide tube
After draining the coolant, fit drain plugs with new sealing rings and tighten them.
Drain plug on coolant regulator housing: > Tightening torque 25 Nm (19 ftlb.) +/- 2 Nm (1.5 ftlb.) .

Drain plug on coolant guide tube > Tightening torque 25 Nm (19 ftlb.) +/- 2 Nm (1.5 ftlb.) .
