Coolant Filling Device - Overview And Setup
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The servicing equipment is used for the following work:
- For emptying the coolant from the cooling system.
- Flushing with compressed air to assist fluid to flow out.
- Check the hydraulic leak-tightness of the system using pressure and vacuum monitoring.
- Refill with coolant.
- The servicing equipment is equipped with an SD card with the specific software as standard.
- Further help for preparing and using the cooling system servicing equipment can be provided in the Equipment service information.

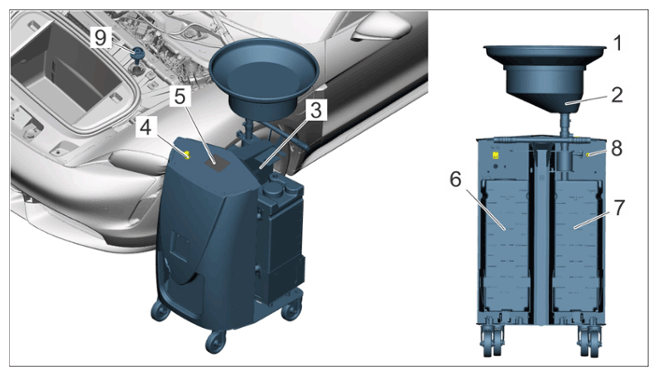

Components of filling device for coolant circuit (shown on the Taycan)
| 1 | > VAS 531 011 - Cooling system service equipment |
| 2 | Funnel |
| 3 | Connection for adapter line on coolant reservoir |
| 4 | Emergency Stop |
| 5 | Screen |
| 6 | NEW coolant reservoir |
| 7 | DRAIN coolant reservoir |
| 8 | Compressed air coupling |
| 9 | Coolant reservoir adapter |
