Removing Cooling-Air Flaps

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

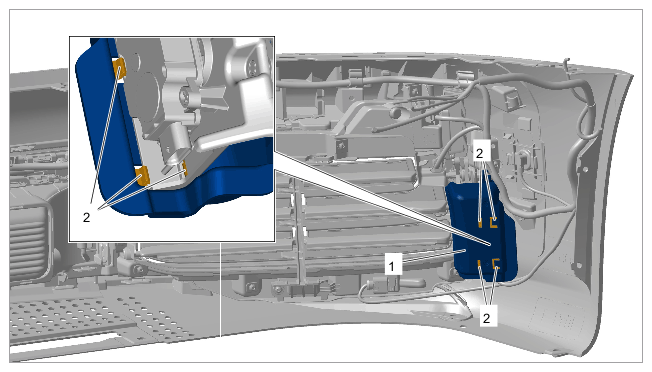

Remove cover -1- .
Release retaining lugs -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Servo motor cover

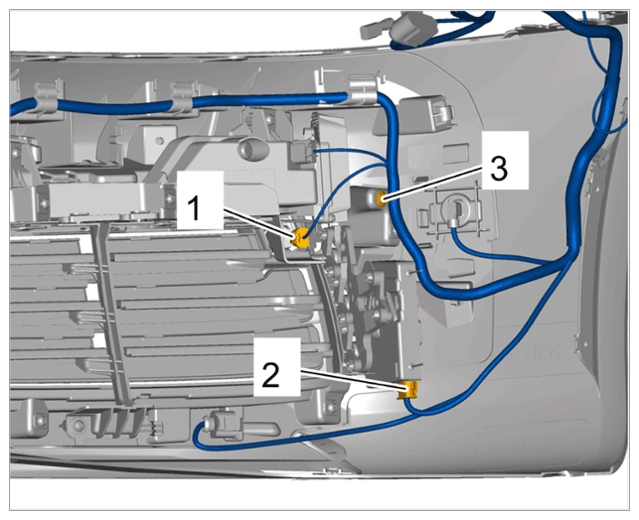

Disconnect electric line.
Release and disconnect cable plug -1 and 2- .

Unclip clip -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plugs

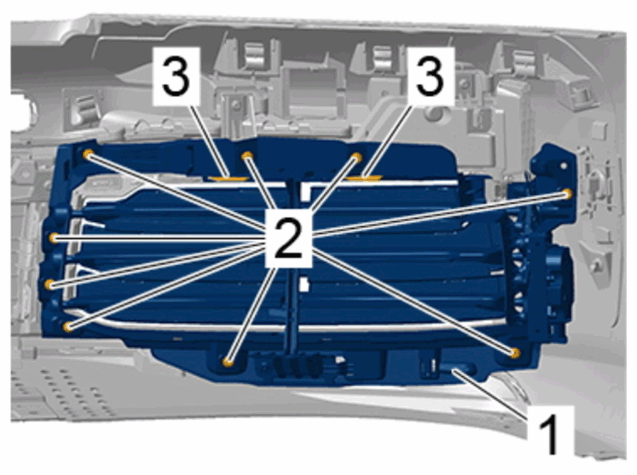

Remove cooling-air flaps -1- .
Unscrew screws on retaining frame -2- .

Release retaining lugs -3- .

Remove cooling-air flaps -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cooling-air flaps
