Removing Motor For Cooling-Air Flaps

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove motor for cooling-air flaps -1-  .

    Unscrew and remove screws -2-  .

    Remove motor for cooling-air flaps -1-  .

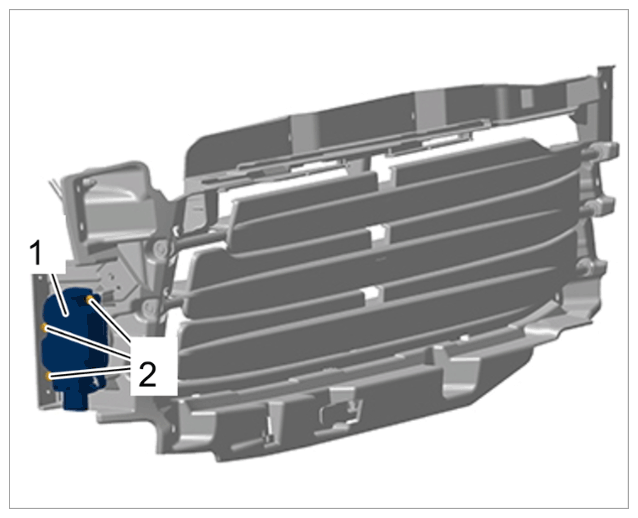

G15488645Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Motor for cooling-air flaps
