Removing Air Guide For Radiator

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air guide for radiator -1-  .

    Loosen retaining lugs -2-  .

    Unclip clip -3-  in -direction of arrow-  .

    Remove air guide for radiator -1-  .

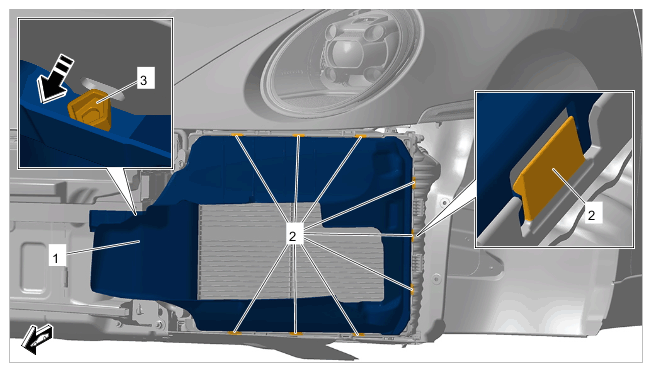

G15488643Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide for radiator
