Removing Electric Fan

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

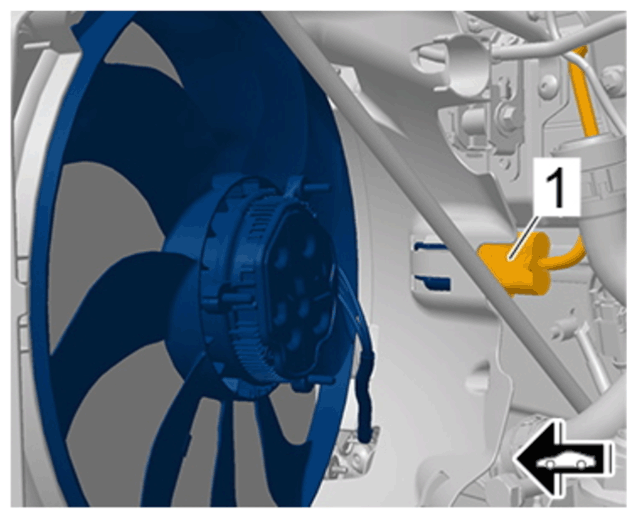

Release and disconnect cable plug -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plug for electric fan

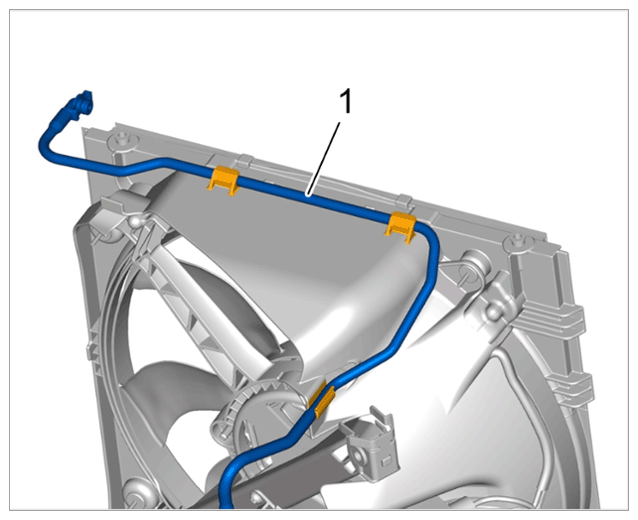

Unclip vent line -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line

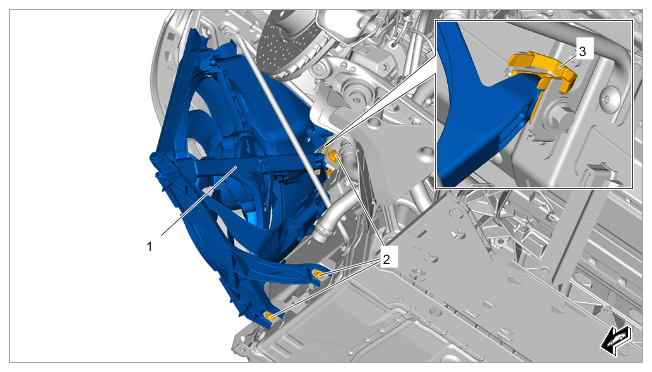

Remove cooling fan housing -1- .
Unscrew and remove screws -2- .

Press locking lugs on the clip -3- together and remove cooling fan housing -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cooling fan housing and air guide

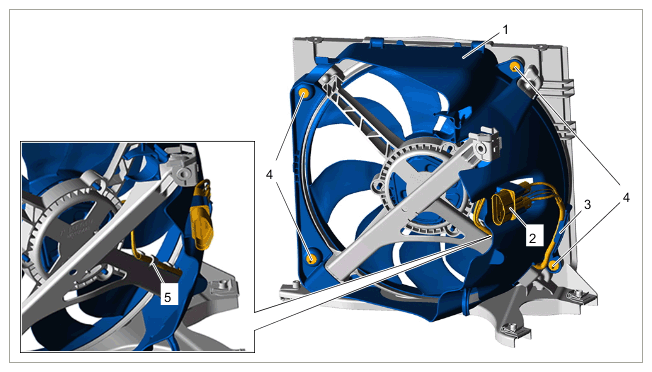

Remove air guide -1- .
Unclip cable plug -2- from air guide -1- .

Disconnect electric line -3- from air guide -1- .

Unclip clips -4- and remove air guide -1- .

Unclip electric line -5- from cooling fan housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide on cooling fan housing

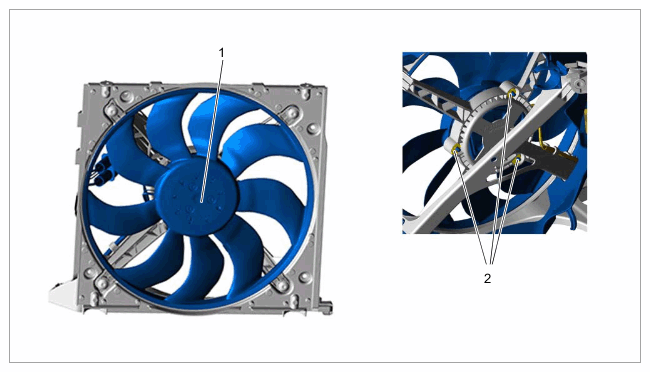

Remove electric fan -1- .
Unscrew nuts -2- .

Remove electric fan -1- by pulling it forward.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric fan
