Technical Values
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Brake booster to mounting saddle | Hexagon nut, M8, replace | Tightening torque | 23 Nm (17 ftlb.) | ||
|

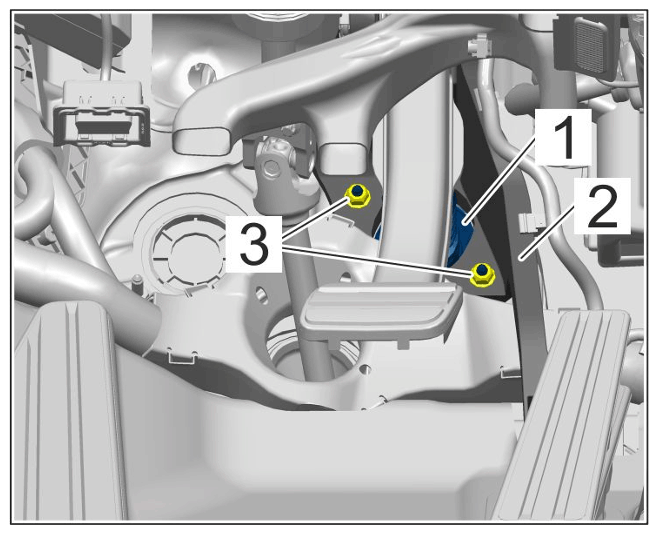

Mounting for brake booster on mounting saddle |
|||||
| Brake lines to brake master cylinder | Cap screw, M14 x 1 | Tightening torque | 16 Nm (12 ftlb.) | ||
|

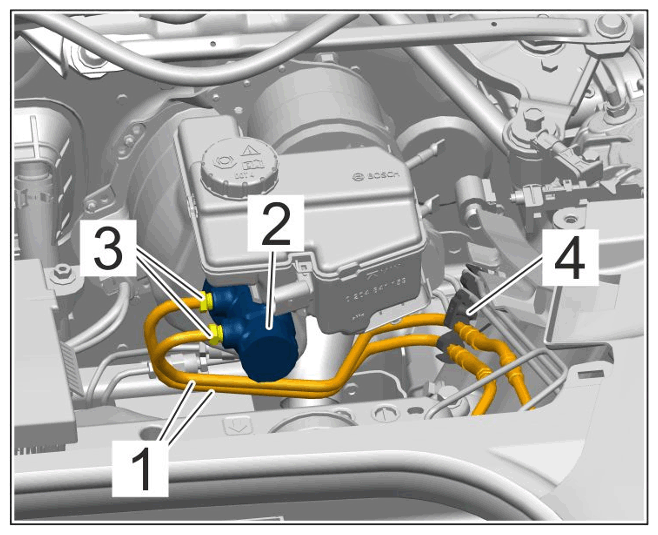

Brake lines on brake master cylinder |
