Installing Rear Brake CALLIPER

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury and damage from brake fluid!

Poisonous if swallowed!
Irritation and damage to skin
Avoid contact with paint surfaces
- Store brake fluid in suitable, labelled containers only
- Wear protective gloves and goggles
- In the event of contact (eyes or skin), wash immediately with water
- In the event of contact with paint surfaces, wash off immediately with water - do not wipe off

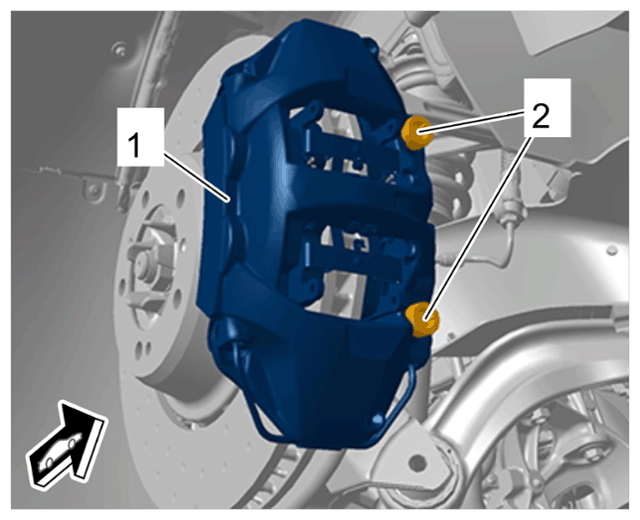

Install brake calliper -1- .

1.1 Fit brake calliper -1- .

1.2 Screw in and tighten brake calliper screws -2- .

Standard brakes:

> Initial tightening 30 Nm (22.1 ftlb. )

> Final tightening + 75 °

"S" brakes:

> Initial tightening 30 Nm (22.1 ftlb.)

> Final tightening + 75 °

PSCB/PCCB brakes:

> Initial tightening 30 Nm (22.1 ftlb.)

> Final tightening + 75 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear brake calliper

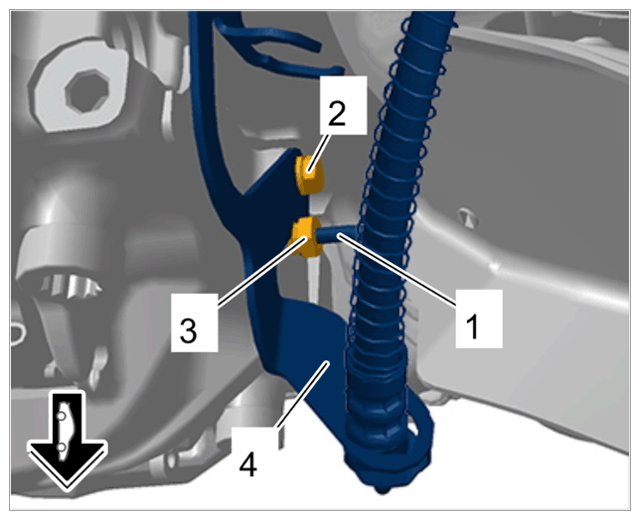

Secure the brake line -1- to the brake calliper.

2.1 Fit holder -4- and insert brake line -1- into the brake calliper.
2.2 Screw in and tighten screw securing holder to brake calliper -2- .
> Tightening torque 10 Nm (7.4 ftlb.)

2.3 Screw in and tighten union nut on brake line -3- .

> Tightening torque 16 Nm (12 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake line on brake calliper

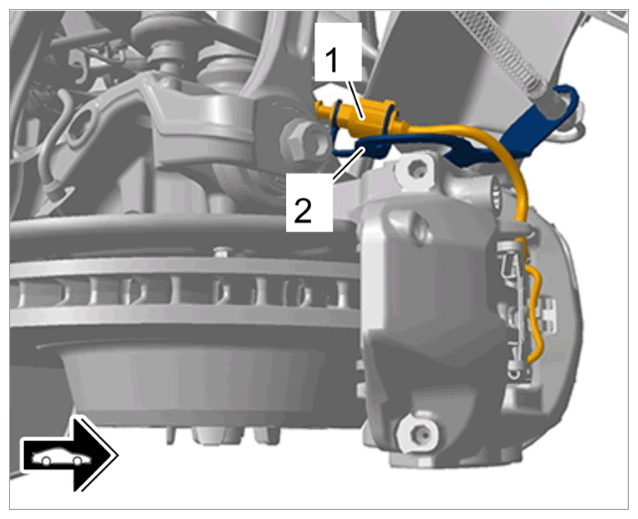

Connect electric plug connection for brake pad wear indicator -1-, lock it and clip it into the holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for brake pad wear indicator
