Subsequent Work

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removing/fitting wheels
  • Risk of damage to (ceramic) brake discs
    • Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic] brake disc.

Information

On vehicles fitted with PCCB brakes, assembly aids (two assembly pins) -1-  must be used for removing and mounting the wheels.

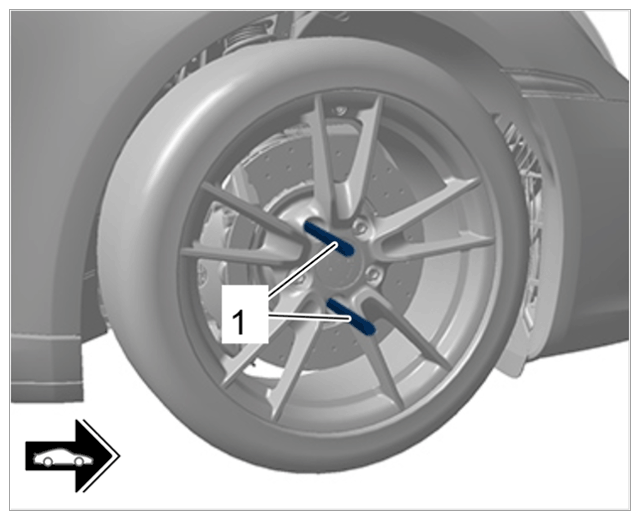

G15527809Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel assembly pins (shown on the front axle)

  1. Fit wheel.

    440519 REMOVING AND INSTALLING WHEEL
