Securing Rear Brake CALLIPER

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury and damage from brake fluid!

Poisonous if swallowed!
Irritation and damage to skin
Avoid contact with paint surfaces
- Store brake fluid in suitable, labelled containers only
- Wear protective gloves and goggles
- In the event of contact (eyes or skin), wash immediately with water
- In the event of contact with paint surfaces, wash off immediately with water - do not wipe off

Information

The core of the warning contact line must not be left exposed! Worn insulation will result in malfunctions.

Remove fastening element -1- and remove brake calliper -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

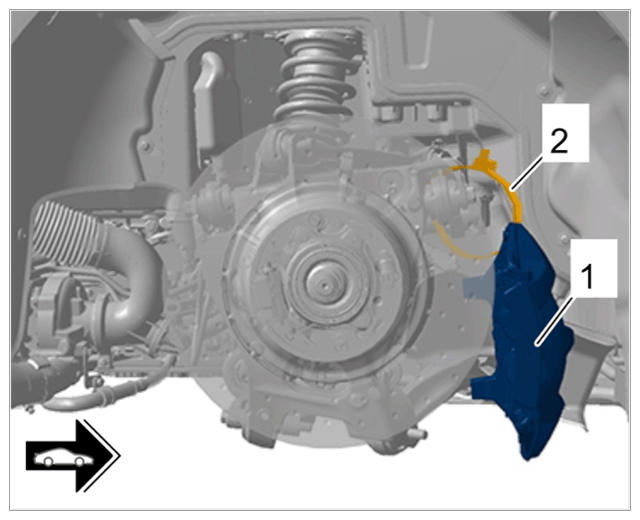

Rear brake calliper in wheel housing (shown as an example)

Install brake calliper -1- .

2.1 Fit brake calliper -1- .

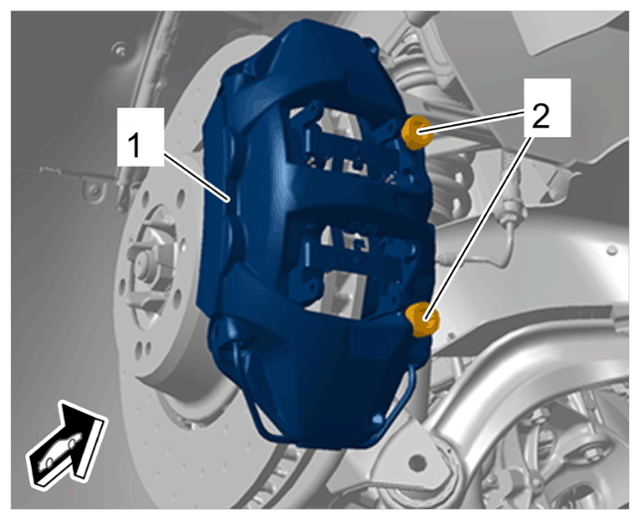

2.2 Screw in and tighten brake calliper screws -2- .

Standard brakes:

> Initial tightening 30 Nm (22.1 ftlb.)

> Final tightening + 75 °

> Initial tightening 30 Nm (22.1 ftlb.)

> Final tightening + 75 °

PSCB/PCCB brakes:

> Initial tightening 30 Nm (22.1 ftlb.)

> Final tightening + 75°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear brake calliper

Connect electric plug connection for brake pad wear indicator -1- , lock it and clip it into the holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

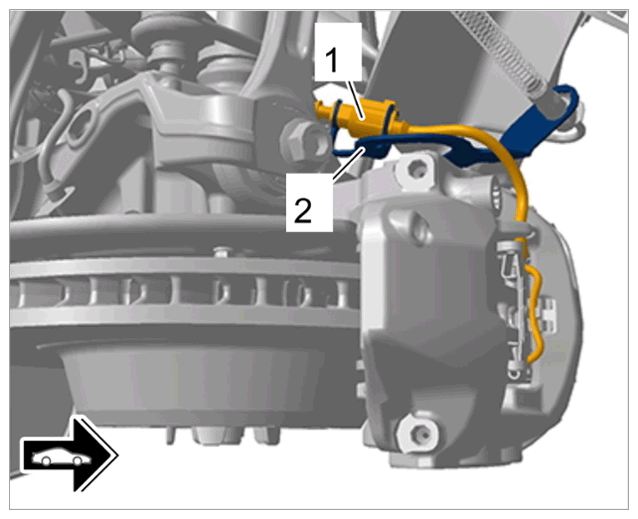

Electric plug connection for brake pad wear indicator

Press the brake pedal several times to fit the brake pads on the brake disc again.

Information

The brake fluid level must be between the Min and Max markings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

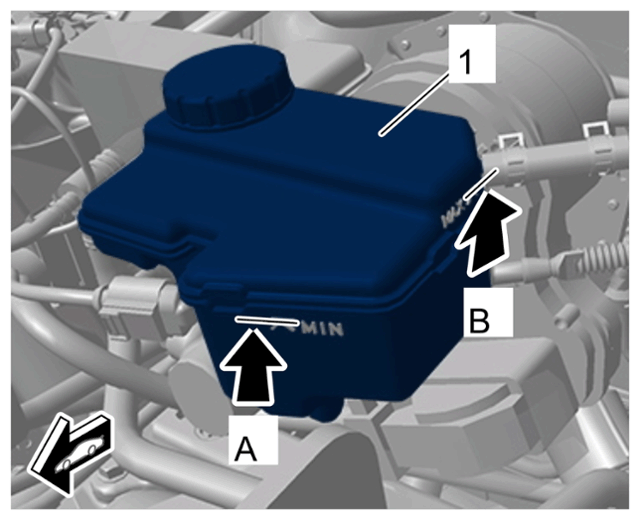

Min/Max markings on brake fluid reservoir

arrow A	Minimum marking (Min)
arrow B	Maximum marking [Max]

Check brake fluid level in the reservoir and correct it if necessary.
