Securing Front Brake CALLIPER

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove fastening element -2- and remove brake calliper -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

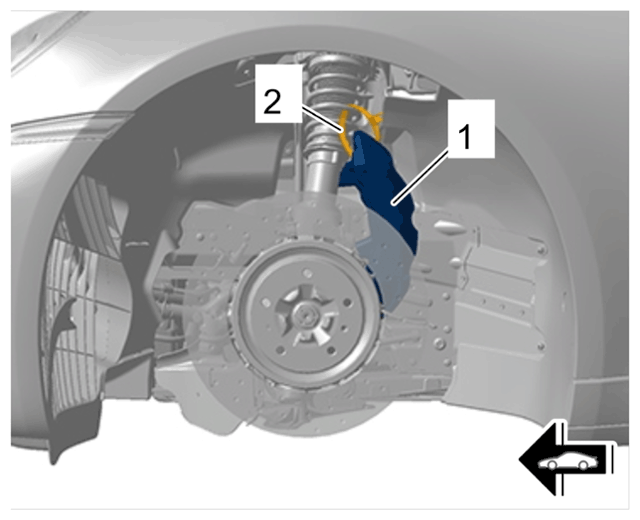

Front brake calliper in wheel housing (shown as an example)

Install brake calliper -1- .

2.1 Fit brake calliper -1- on wheel bearing housing.
2.2 Replace brake calliper screws -2- .

2.3 Screw in and tighten new brake calliper screws -2- .

Grey cast-iron brakes:

> Initial tightening 30 Nm (22.1 ftlb.)

> Final tightening + 75 °

PSCB brakes:

PCCB brakes:

> Initial tightening 30 Nm (22.1 ftlb.)

> Final tightening + 75 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front brake calliper

Install holder -1- at the wheel bearing housing.

3.1 Fit holder -1- .

3.2 Screw in and tighten screw on holder -2- .

> Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder on wheel bearing housing

Secure electric lines for brake pad wear indicator.

4.1 Engage line retaining rubbers -2- in the holder -3- .

4.2 Connect electric plug connection for brake pad wear indicator -1- , lock it and clip it into the holder -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

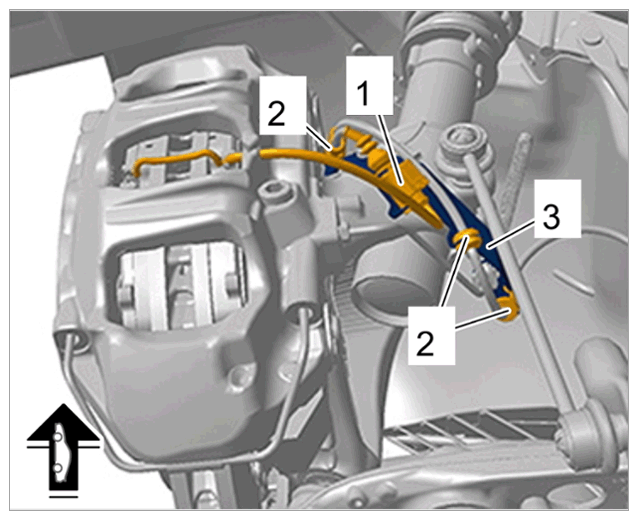

Electric plug connection for brake pad wear indicator

Press the brake pedal several times to fit the brake pads on the brake disc again.

Information

The brake fluid level must be between the Min and Max markings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

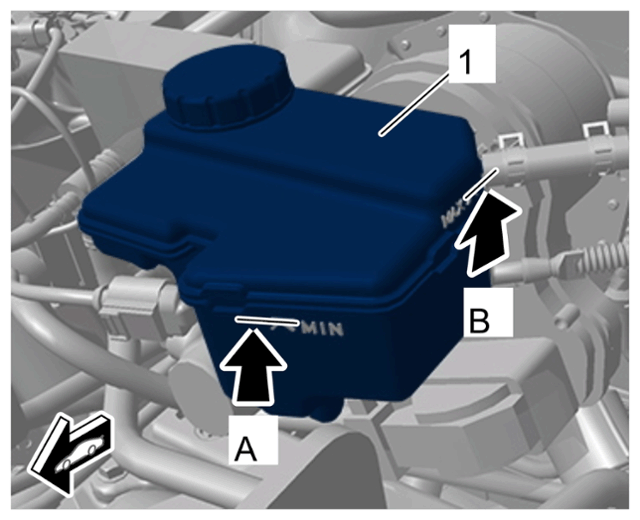

Min/Max markings on brake fluid reservoir

arrow A	Minimum marking (Min)
arrow B	Maximum marking (Max)

Check brake fluid level in the reservoir and correct it if necessary.
