Installing Brake Fluid Reservoir

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Replace rubber seals between the brake master cylinder and brake fluid reservoir.
Fit brake fluid reservoir -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

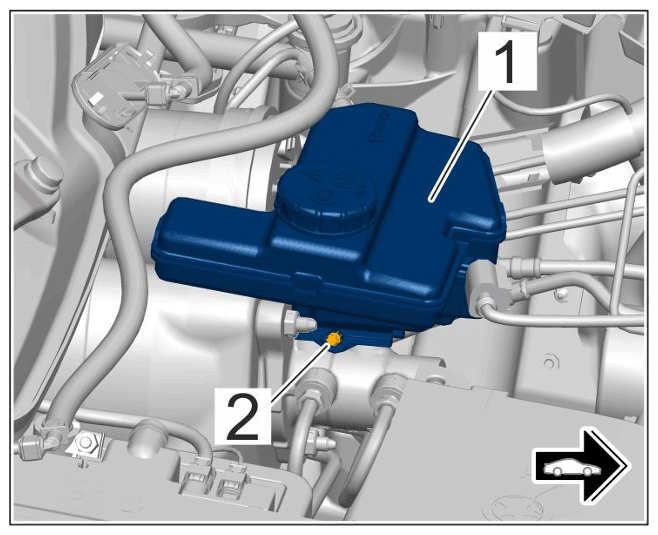

Mounting for brake fluid reservoir
1. 2.1 Fit brake fluid reservoir -1- into the brake master cylinder.
2. 2.2 Tighten screw -2- Tightening torque 7 Nm (5 ftlb.)
Fit lines on the brake fluid reservoir -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

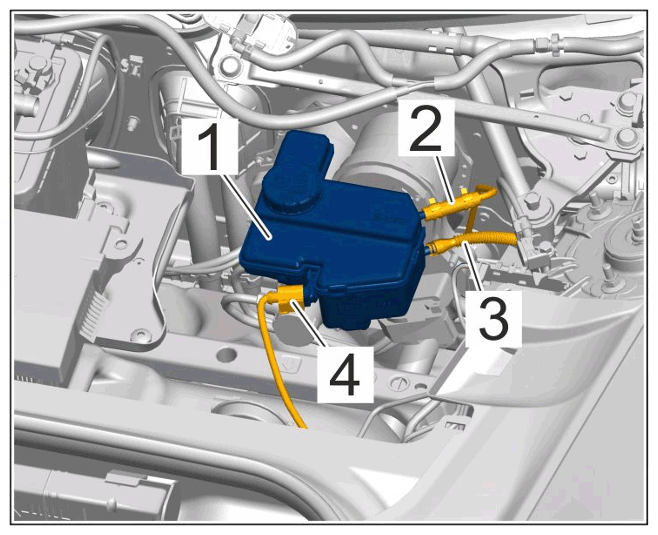

Lines on brake fluid reservoir
1. 3.1 Connect and lock electric plug connection -4- .
2. 3.2 On vehicles with manual transmission: Connect vent line -2- and return line -3- to the brake fluid reservoir -1- .
