Technical Values

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance 1
Bleeder valve on brake calliper front (not GT3 vehicles)	Item 1: M10 x 1 thread	Tightening torque	14 Nm (10.3 ftlb.)	+/- 2 Nm (1.5 ftlb.)

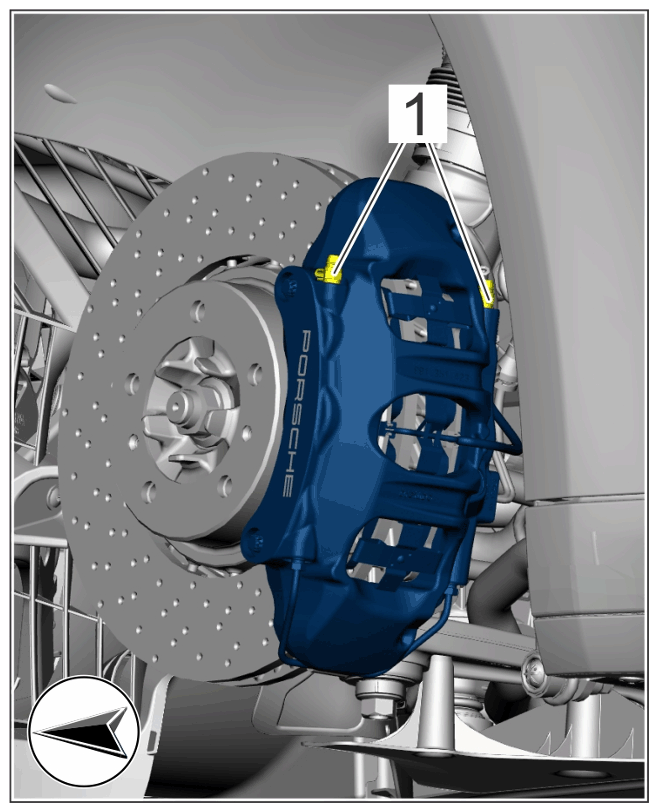

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper for bleeder valves (view of front axle)
Bleeder valve to brake calliper front - GT3 vehicles	Items 2 + 4: M10 x 1 thread	Tightening torque	17 Nm (12.5 ftlb.)	+ 3 Nm (2.2 ftlb.)

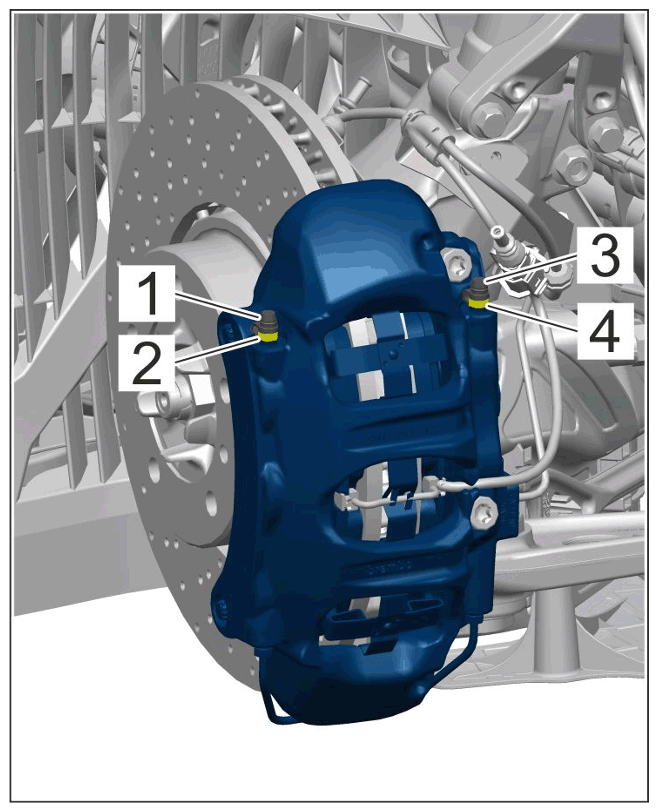

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Protection cap and bleeder valve
Bleeder valve to rear brake	Item 1: M10 x 1	Tightening torque	14 Nm (10.3 ftlb.)

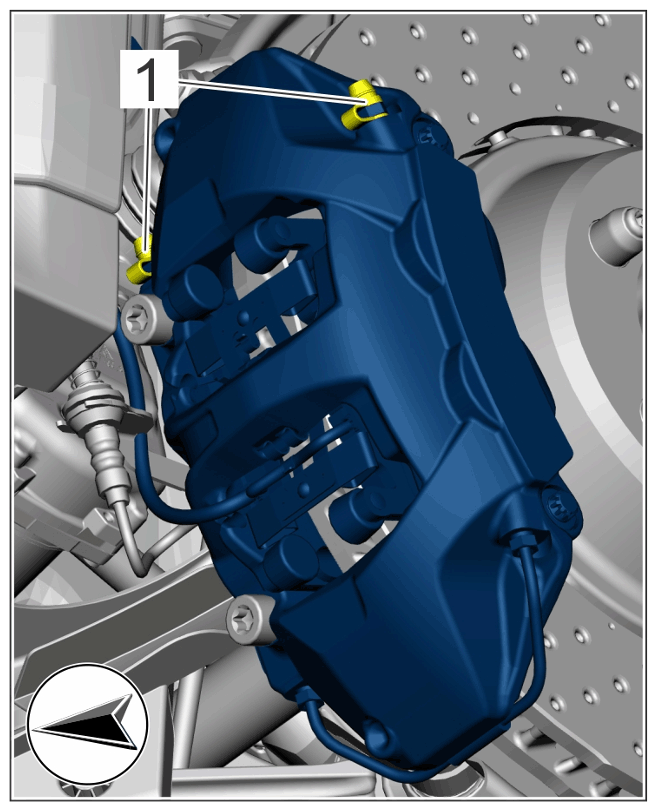

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper rear bleeder valves
Bleeder valve to brake calliper rear - GT3	Item 1: M10 x 1 thread	Tightening torque	12 Nm (8.9 ftlb.)	+ 4 Nm (3 ftlb.)

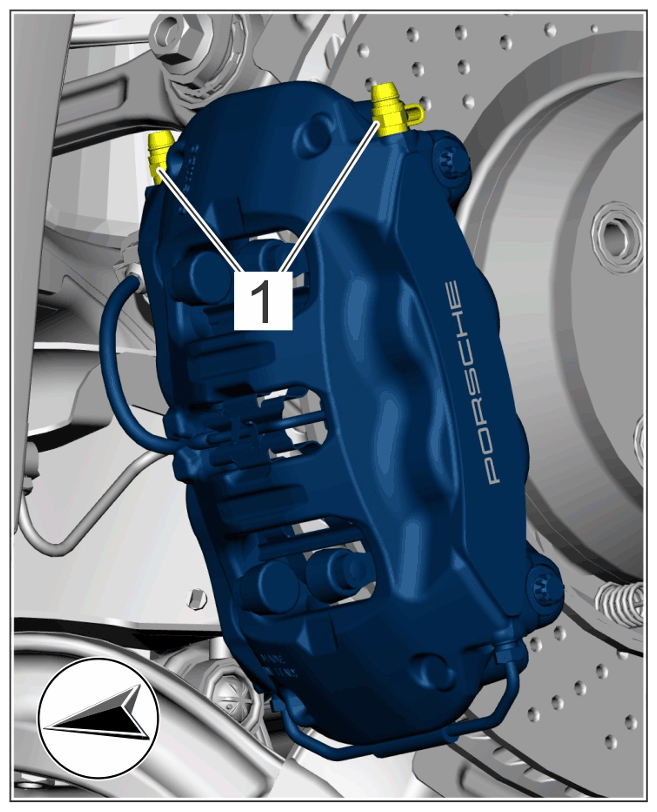

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bleeder valve to brake calliper rear
