Technical Values
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Spreader device on wheel bearing housing | Item 2: Counters unscrew, M8 x 38/always replace screws after every removal | initial tightening | 10 Nm | ||
| Spreader device on wheel bearing housing | Item 2: Counters unscrew, M8 x 38/always replace screws after every removal | Final tightening | + 60° | ||
|
Spreader device |
|||||
| Brake disc cover plate to wheel bearing housing (rear) | Item 2: M6x 14/Observe tightening sequence!/always replace screws following removal | Initial tightening | 4 Nm (2.9 ftlb.) | ||
| Brake-disc cover plate to wheel bearing housing (rear) | Item 2: M6x 14/Observe tightening sequence!/always replace screws following removal | Final tightening | + 45 (33 ftlb.) ° | ||
|

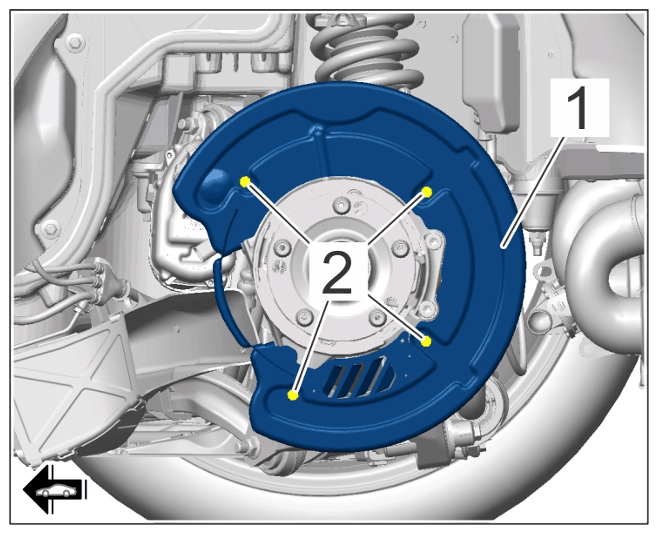

Rear brake disc cover plate |
