Install Spreader Device

Information

• From week 48/2021, only one spreader device/one actuator is installed on the rear left wheel bearing housing on all 992 vehicles with Porsche double-clutch transmission (PDK) apart from GT variants.
• There is only one spacer/dummy on the rear right wheel bearing housing that does not function.
• When replacing the right wheel bearing housing, the removal and installation of the spacer is identical to the previous component.

Information

• The spreader device (actuator) is fitted on the rear axle wheel bearing housing.
• If the spreader device (actuator) is to be re-used, secure it in the brake shoe mountings with a tie-wrap to prevent it from turning.
• The twist lock must not be removed until the brake shoes are installed.
• The brake shoe mountings must not be twisted.

1. If using the same actuator again:

   Clean the spreader device.

   1. 1.1  Carefully clean the spreader device using suitable aids, making sure not to damage the dust boots.
   2. 1.2  Perform a visual inspection of the spreader device. In particular, check the dust boots for cracks or other damage.
2. Install spreader device -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

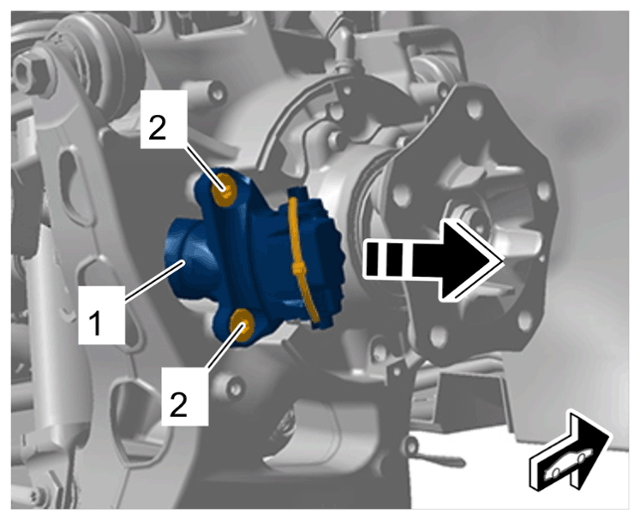

   Spreader device

   1. 2.1  Insert spreader device -1-  .
   2. 2.2  Fit and tighten new screws -1-.

      > initial tightening 10 Nm

      > Final tightening + 60°

3. Secure electric lines for the spreader device -1 and 2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

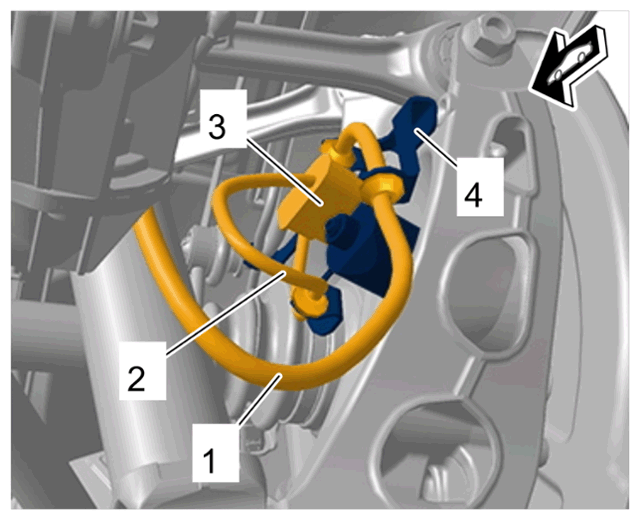

   Electric wire harness for spreader device

   1. 3.1  Clip electric line -1 and 2-  into holder -4-.
   2. 3.2  Connect and lock cable plug for spreader device -3-.
4. Install brake disc cover plate -3-  (not required on GT3 vehicles).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

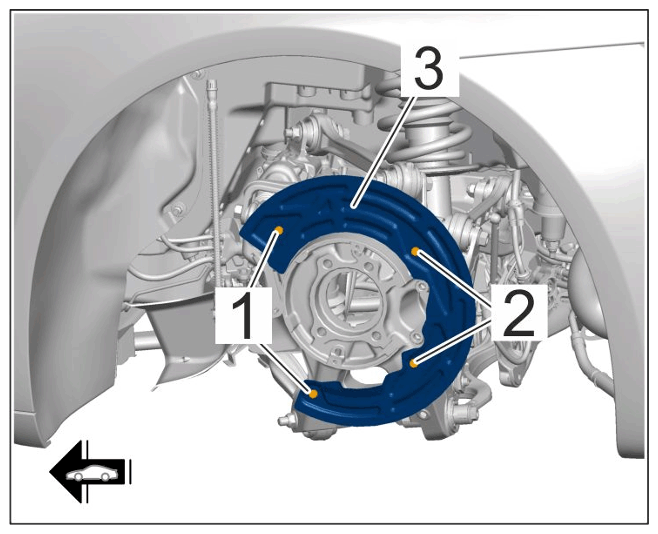

   Brake disc cover plate

   1. 4.1  Position cover plate -3-  .
   2. 4.2  Fit screws -1 and 2-  by hand.
   3. 4.3  Tighten screws -1 and 2-  .

      > Initial tightening 4 Nm (2.9 ftlb.)

      > Final tightening + 45 (33 ftlb.)
