Removing Brake Shoes

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

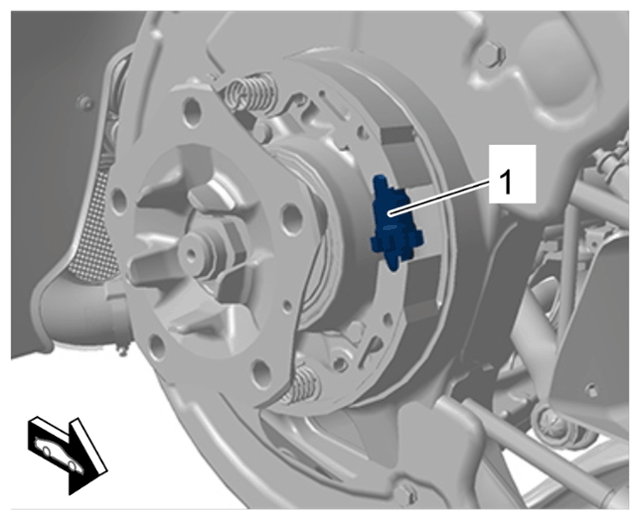

Mark installation position of the brake shoes and adjustment device.
Loosen adjustment device -1- completely using a suitable tool (e.g. a screwdriver).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjustment device for brake shoes
WARNING:
Preloaded or pressurized components
- Risk of injury (e.g. crushing or bruising) when removing and installing springs
  - Do not reach into the danger area.
  - Relieve the tension on components before starting work.
  - Secure components to prevent them from loosening suddenly.
  - Wear protective gloves and goggles.
  - Be very careful when working on the brake system.

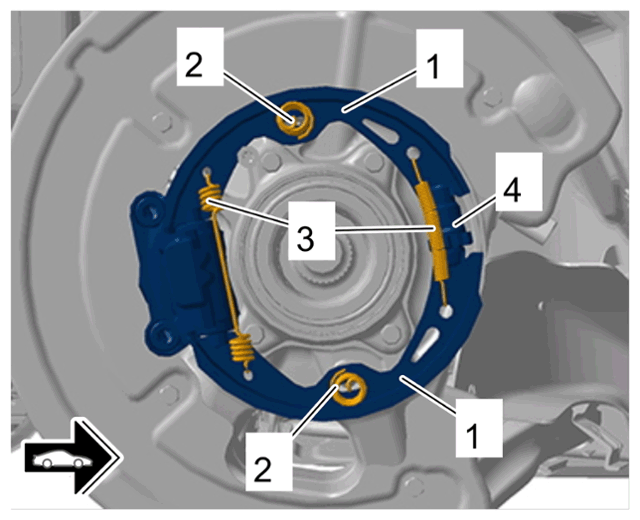

Remove brake shoes -1- .
1. 3.1 Press compression springs -2- in slightly using a suitable tool, turn by 90° and remove them.
2. 3.2 Disengage tension springs -3- .
3. 3.3 Remove brake shoes -1- together with adjustment device -4- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake shoes

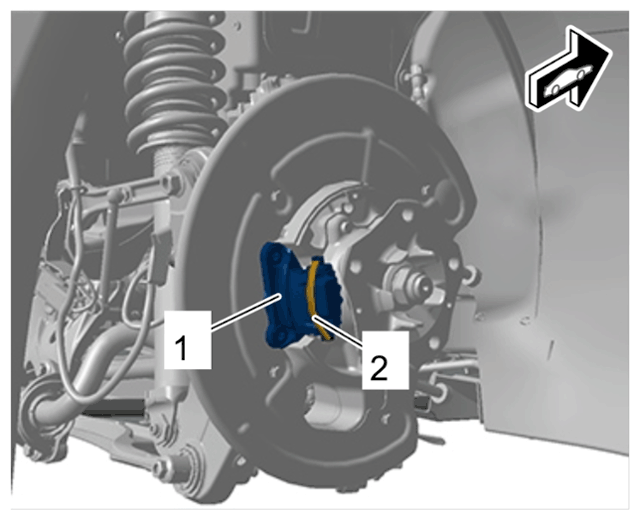

Secure spreader device (actuator) -1- of the electric parking brake using a tie-wrap -2- to prevent it from turning.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spreader device (actuator)
