Removing Actuator For Parking Brake
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Unscrew screws -2-
on parking brake actuator -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

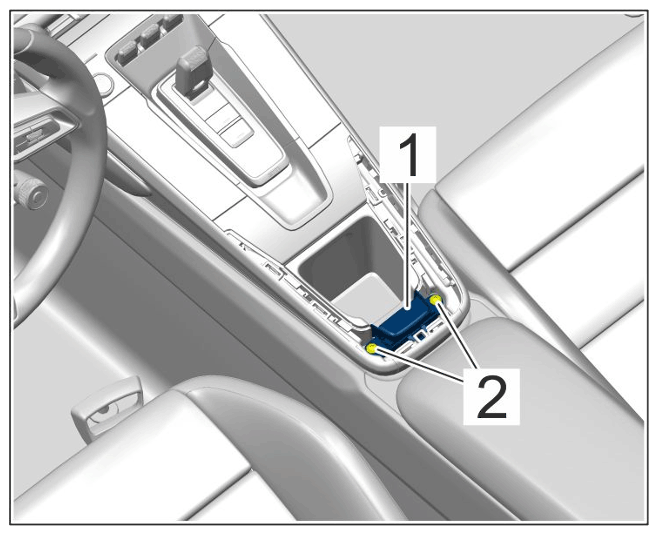

Mounting for parking brake actuator
- Release and disconnect electric plug connection -2-
on parking brake actuator -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

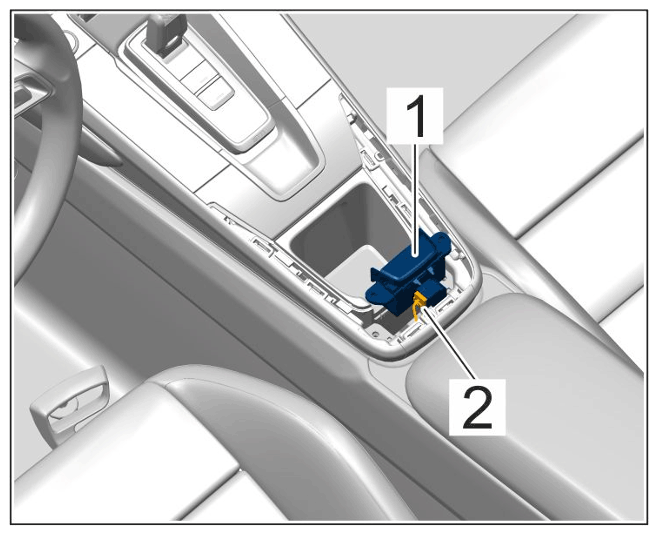

Electric plug connection for parking brake actuator
