Installing Actuator For Electric Parking Brake
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Push on and lock electric plug connection -2-
for parking brake actuator -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

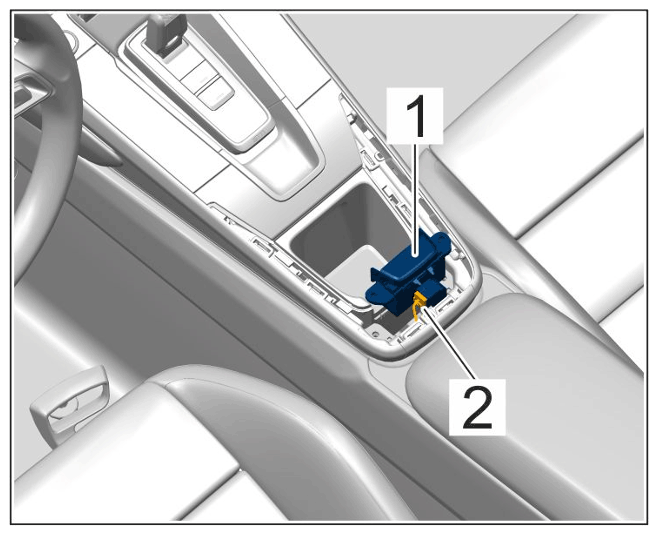

Electric plug connection for parking brake actuator
- Tighten screws -2-
on parking brake actuator. > Tightening torque 3 Nm
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

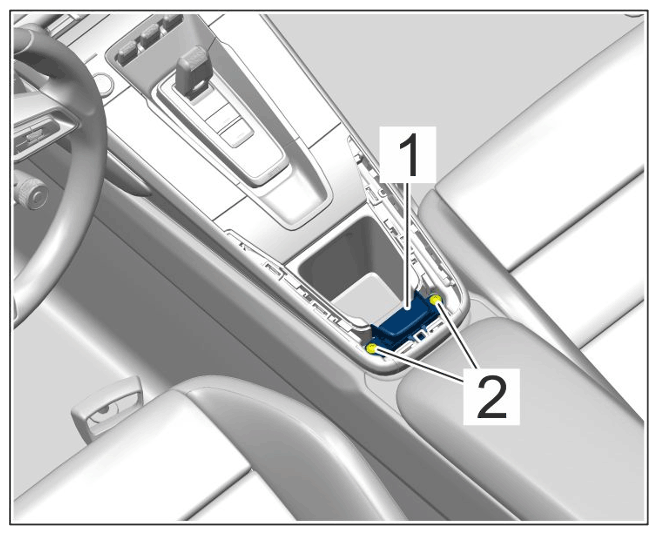

Mounting for parking brake actuator
