Removing Rear Brake Disc

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move electric parking brake (EPB) into installation position.
    1. 1.1  Connect PIWIS Tester  to the vehicle; switch on PIWIS Tester.
    2. 1.2  Switch on ignition.
    3. 1.3  Start diagnostics.
    4. 1.4  Select 'Porsche Stability Management (PSM)  ' control unit.
    5. 1.5  Select 'Drive links/tests  ' tab.
    6. 1.6  Select menu item 'Start brake pad change mode  ' press F12  to continue.
    7. 1.7  Follow the instructions on the Tester.

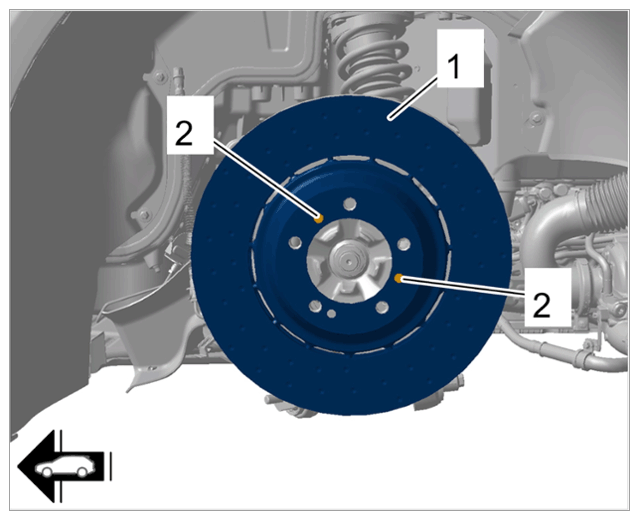

  2. Wheels with wheel bolts:  Remove brake disc -1-  .
    1. 2.1  Remove brake disc centering screws -2-  .
    2. 2.2  Replace brake disc centering screws -2-  .
    3. 2.3  Remove brake disc -1-  from the wheel hub.
      G15527716Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear brake disc

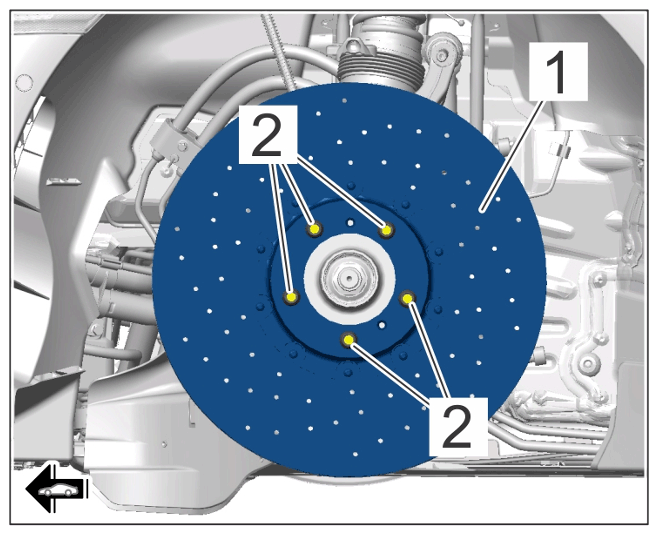

  3. Wheels with centre lock (not GT3 vehicles):  Remove brake disc -1-  .
    1. 3.1  Unscrew wheel driver -2-  .
    2. 3.2  Replace wheel driver -2-  with screws.
    3. 3.3  Remove brake disc -1-  from the wheel hub.
      G15527717Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake disc wheel driver

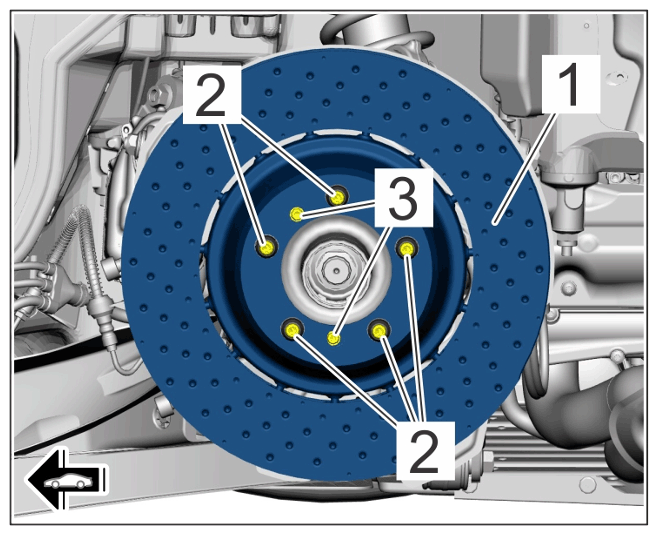

  4. Wheels with centre lock GT3 vehicles:  Remove brake disc -1-  .
    G15527718Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Brake disc GT3

    1. 4.1  Remove and replace brake disc centering screws -3-  .
    2. 4.2  Remove brake disc -1-  from the wheel hub.
