Removing Brake Disc Front (Central Lock]

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove brake disc front
    1. 1.1  Unscrew screws for wheel driver pins -2-  and replace them. Not valid for GT3 vehicles!

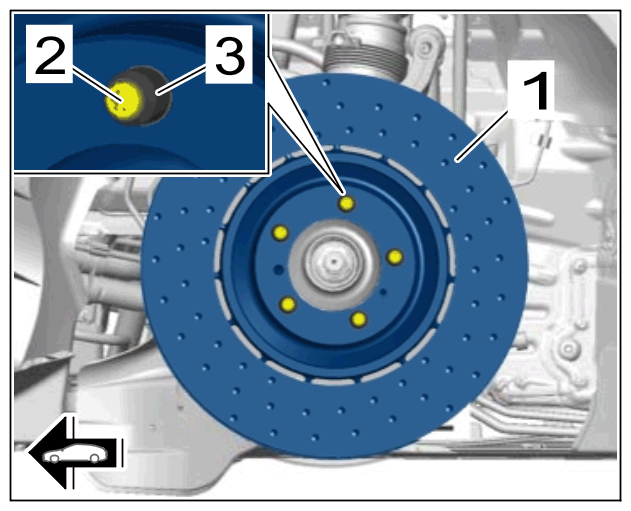

      G15527687Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake disc front with central lock (not GT3)

    2. 1.2  Remove and replace wheel drive pin -3-  . Not valid for GT3 vehicles!
    3. 1.3 On GT3 vehicles:  Unscrew centering screws -3-  and replace them.

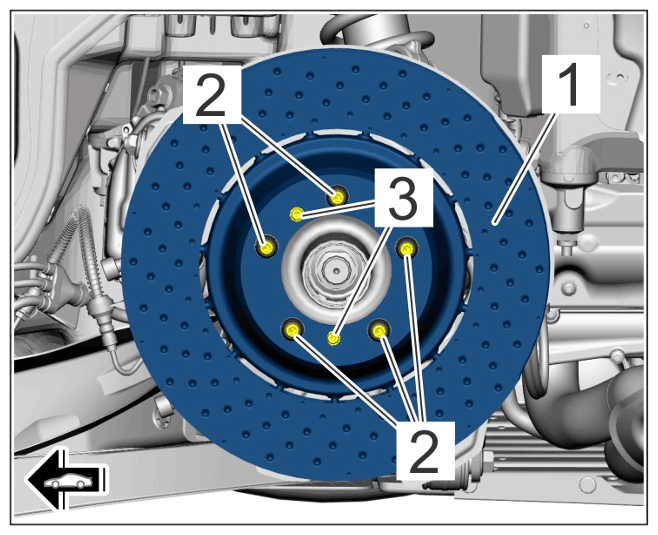

      G15527688Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake disc GT3

    4. 1.4  Take off brake disc front.
