Installing Brake Disc Front

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Prepare for installing the brake disc front.
    1. 1.1  Check that all components are in perfect condition (visual inspection) and replace them if necessary.
    2. 1.2  Clean the levelling and centering surfaces on the brake disc front and wheel hub.
    3. 1.3  Apply a very thin coat of Optimoly TA (aluminum paste) to the centering surface on the wheel hub. Not relevant for grey cast iron and PCCB brake discs on GT3 vehicles!

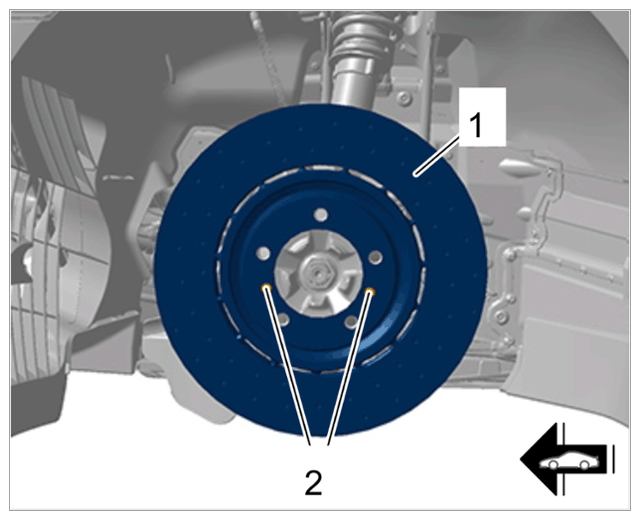

  2. Install brake disc front -1-  .
    1. 2.1  Fit brake disc front -1-  on the wheel hub.
    2. 2.2  Fit and tighten centering screws for front brake disc -2-.

      > Tightening torque 5 Nm (3.7 ftlb.)

      G15527689Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake disc front
