Measuring Front Brake Disc - Lateral Runout (Wheel Hub]
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
The front face of the wheel hub must not be corroded.
The front face of the wheel hub must be cleaned using a fine emery cloth if necessary.
- Measure lateral runout of the wheel hub.
- 1.1
> 9510/1 - Adapter plate-2-
must be fitted on the wheel hub. Then, screw in and tighten wheel bolts.
> Tightening torque 160 (l18 ftlb.) Nm
- 1.2 Secure dial gauge -1- with ball joint arm from > Nr.147-1 - dial gauge set with ball joint arm at a suitable position on the wheel suspension.
- 1.3 Adjust dial gauge -1- from > Nr.147-1 - dial gauge set with ball joint arm so that the dial gauge -1- is touching the outer edge of the wheel hub with slight preload.
- 1.4
Set dial gauge -1-
from > Nr.147-1 - dial gauge set with ball joint arm
to zero, turn the wheel hub at the > 9510/1 - adapter plate-2-
slowly by one full turn and check the deflection of the dial gauge -1-

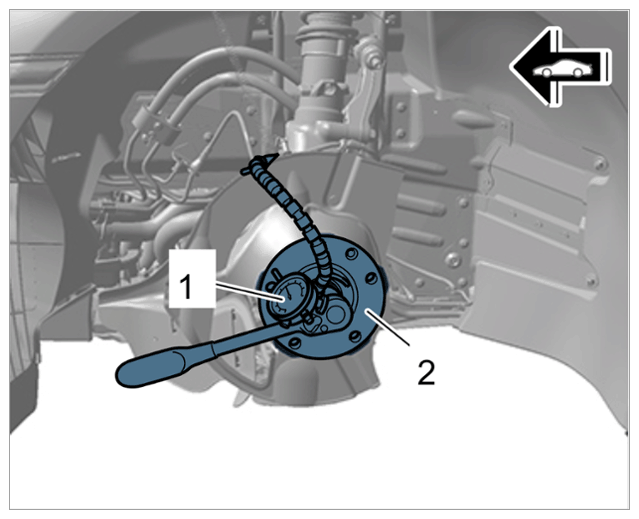

Dial gauge on wheel hub
- 1.1
> 9510/1 - Adapter plate-2-
must be fitted on the wheel hub. Then, screw in and tighten wheel bolts.
- If the lateral runout of the wheel hub is not within the tolerance range:
Replace wheel hub.
405755 REPLACING FRONT WHEEL BEARING
Maximum lateral runout of the wheel hub: > Measured value 0.03 mm - Only
if the lateral runout of the brake disc is not within the tolerance range, but the lateral runout of the wheel hub is within the tolerance range:
Replace front brake disc.
