Technical Values
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

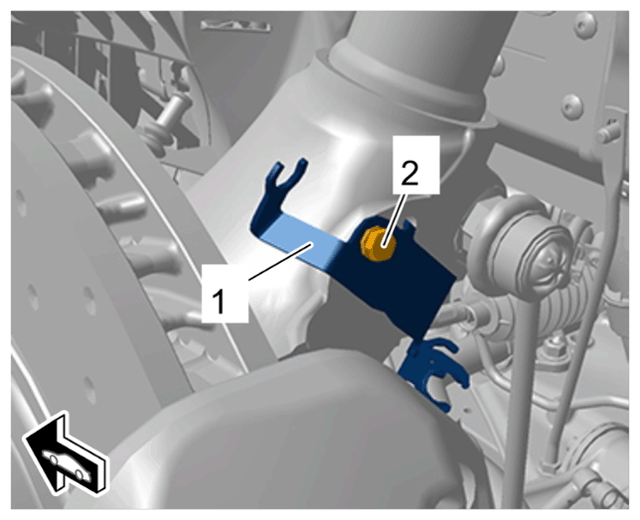

| Brake hose bracket to wheel bearing housing | Item 2: Hexagon-head bolt, M6 | Tightening torque | 10 Nm (7.5 ftlb.) | ||
|
Bracket on wheel bearing housing |
|||||

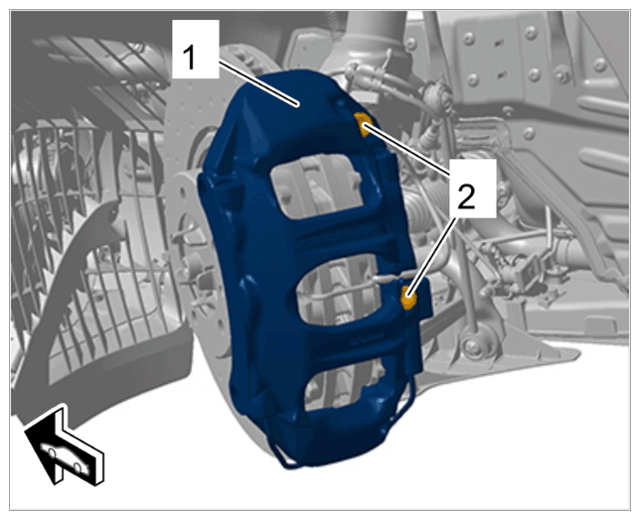

| Brake calliper to wheel bearing housing (grey cast iron) | Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal | Initial tightening | 30 Nm (22.1 ftlb.) | ||
| Brake calliper to wheel bearing housing (grey cast iron) | Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal | Final tightening | + 75° | ||
|
Brake calliper front |
|||||
| Brake calliper to adapter (PCCB) | Item 2: Cheese head bolt, M12x 1.5 x 85/always replace bolts following removal | Initial tightening | 30 Nm (22.1 ftlb.) | ||
| Brake calliper to adapter (PCCB) | Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal | Final tightening | + 75° | ||
|
Brake calliper front |
