Removing Disc Brake Pads Front

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Press back brake pistons.
1. 1.1 > T10145 - Piston resetting appliance must be inserted between the disc brake pads.
Removing disc brake pads -1-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

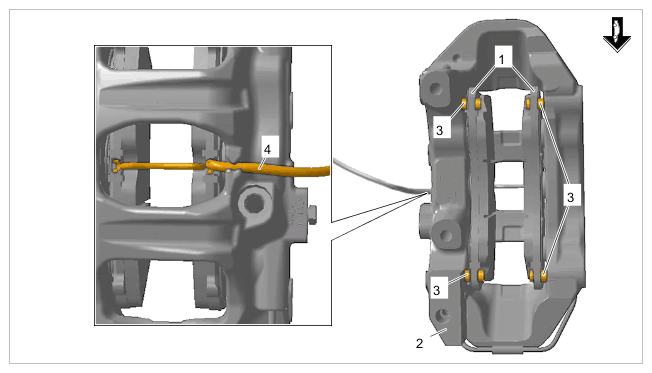

Disc brake pads in brake calliper
1. 2.1 Fit a plastic wedge between the brake pads -1- and brake calliper -2- .
2. 2.2 Carefully loosen the disc brake pads from the brake calliper by turning the tool slightly.
3. 2.3 Unclip electric plug connection for brake pad wear indicator -4- and remove disc brake pads from pad retaining pins -3- .
Clean the contact surfaces of the disc brake pads in the brake calliper and check the dust boots for damage/cracks.
