Install brake disc air guide -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

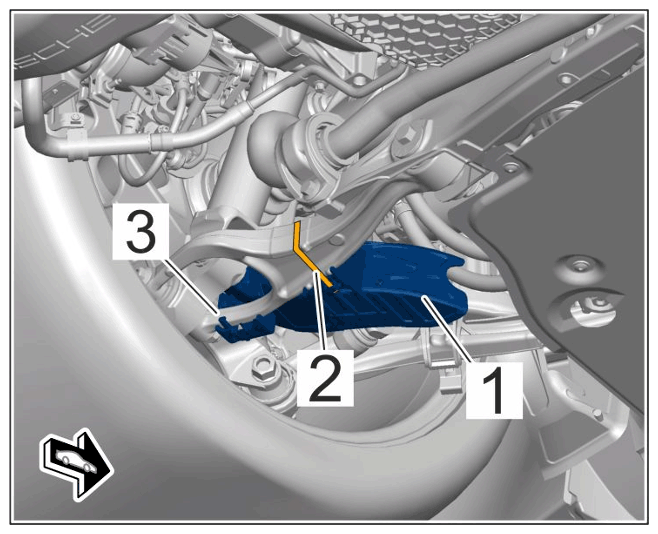

Mounting for brake disc air guide
1.1
Secure retaining clip -3-
on trailing arm.
1.2
Tighten tie-wraps -2-
using > VAS 6927 - Tie-wrap pliers
.
