Installing Brake Disc Air Guide (Rear]

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install brake disc air guide -1-  .

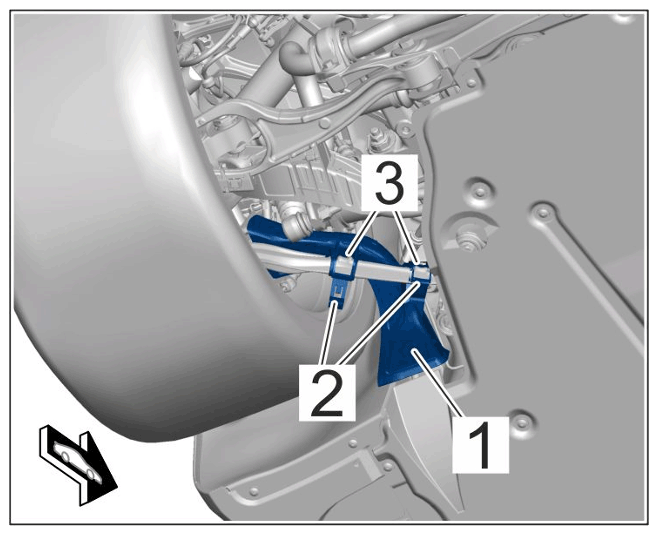

    G15527631Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for brake disc air guide

    1. 1.1  Align clips -2-  with the pins -3-  .
    2. 1.2  Secure clips -2-  (clips must engage fully).
