Removing The Brake Disc PCCB Air Guide (Rear)
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

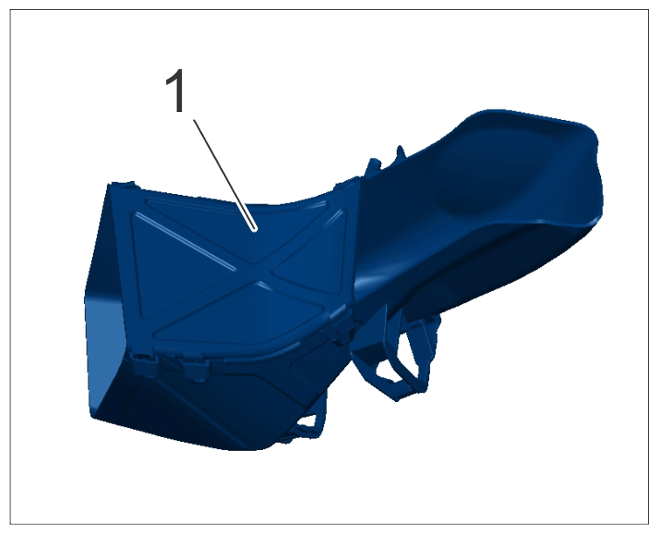

Display: Air guide -1- for PCCB brake
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Air guide for PCCB brake
- Remove the air guide -1-
for the brake disc.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

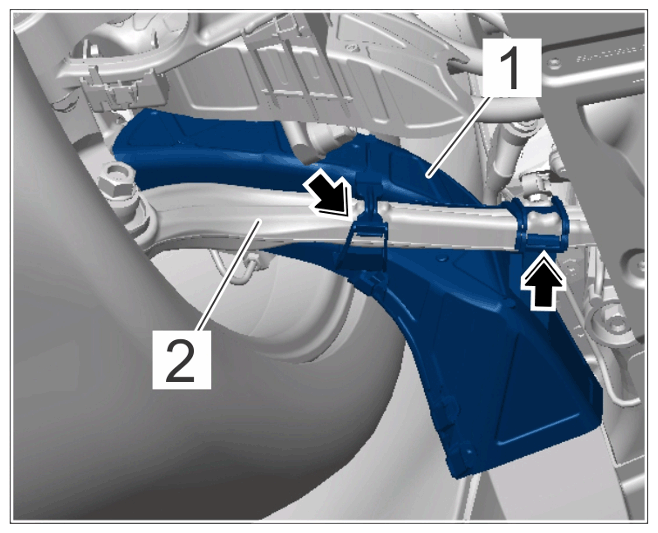

Brake-disc air guide
- 1.1
Open the fixing clips -Arrows-
and remove the air guide -1-
on the -2-
trailing arm.
