WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Install brake disc -1-
air guide.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

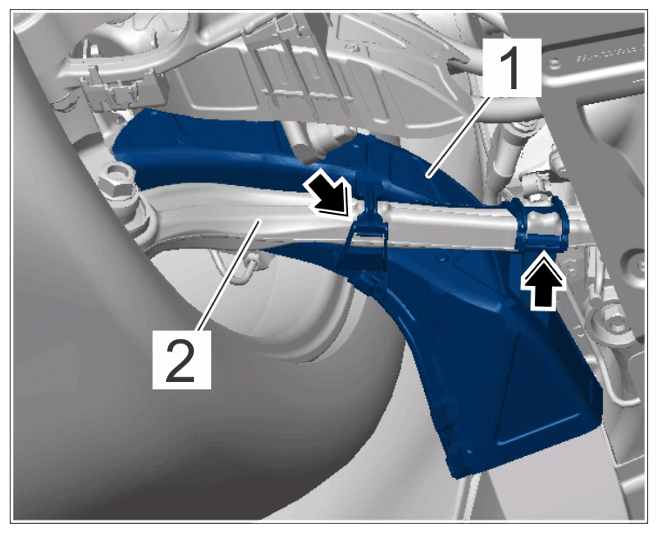

Brake-disc air guide
1.1
Position the air guide -1-
on the trailing arm -2-
and close the fastening clips -Arrows-
.
