Removing Brake Disc Air Guide (Front)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove cover on lower trailing arm -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

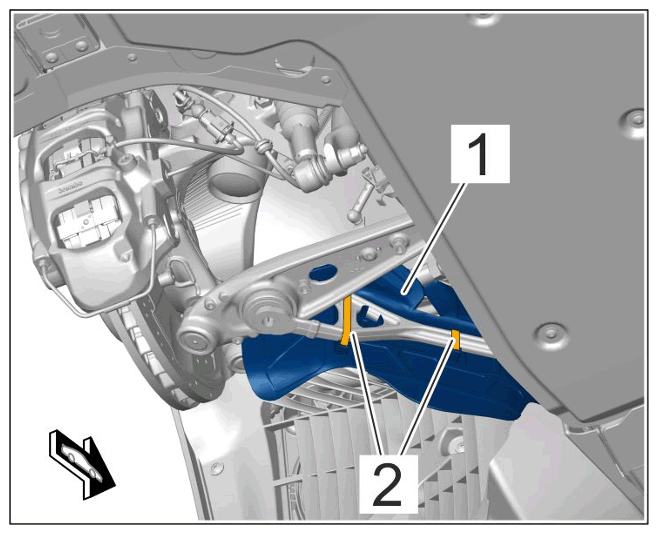

Mounting for cover on lower trailing arm
1. 1.1 Unscrew and remove screws -2- .

Remove tie-rod ball -1- from the wheel bearing housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

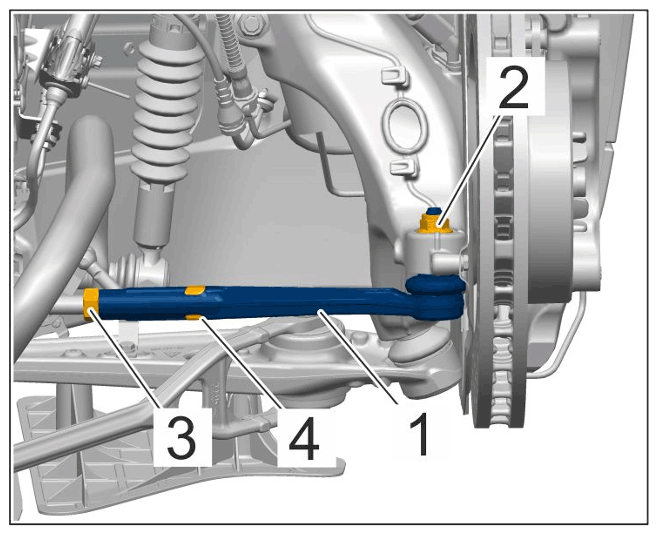

Mounting for tie-rod ball

2.1 Unscrew nut -2- and counter using > 9546 - screwdriver at the ball-joint pin.

2.2 Press off the tie-rod ball using > 9560 - press-out tool-1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Press-out tool 9560 on tie-rod ball

Check the boot -1- of the tie-rod ball for signs of damage. If the boot is damaged, replace the tie-rod ball.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tie-rod ball boot
Remove brake disc air guide -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

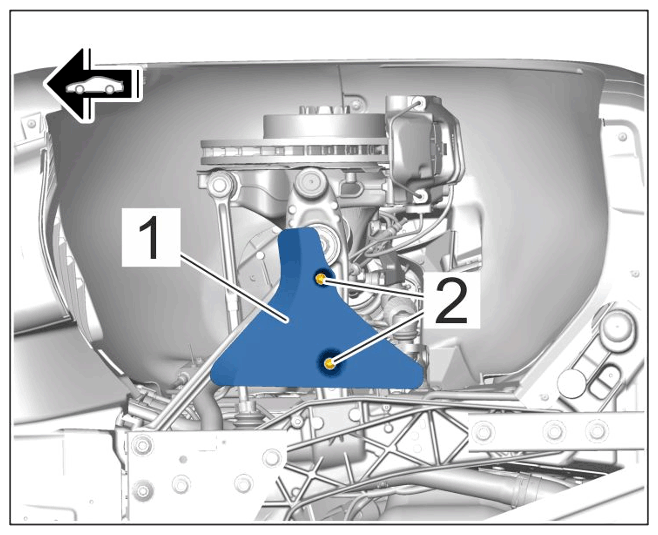

Mounting for brake disc air guide
1. 4.1 Cut tie-wrap -2- .
