Installing Brake Disc Air Guide (Front)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install brake disc air guide -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

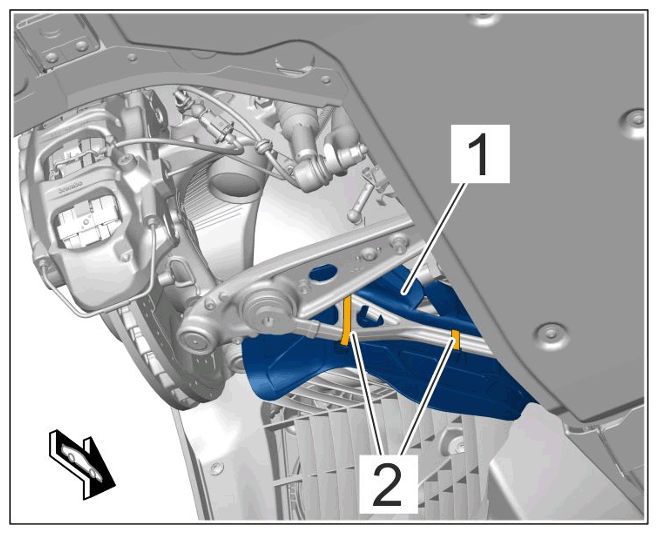

Mounting for brake disc air guide
1. 1.1 Tighten tie-wraps -2- using > VAS 6927 - Tie-wrap pliers .

Fit tie-rod ball -1- on the wheel bearing housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

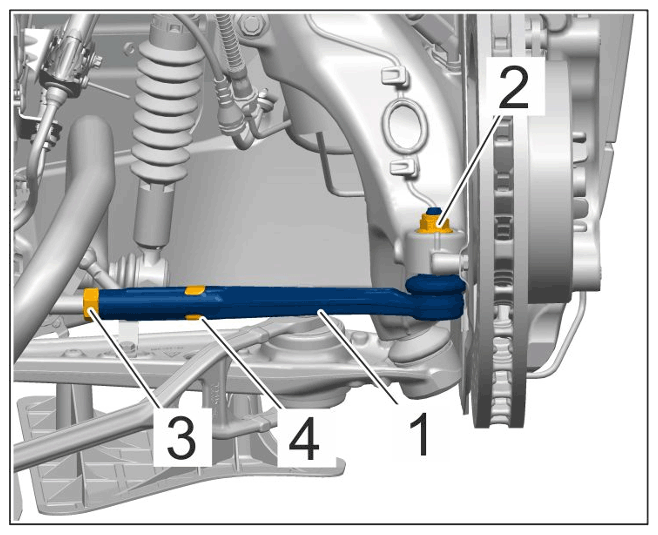

Mounting for tie-rod ball

2.1 Tighten nut -2- . > Tightening torque 85 Nm (62.7 ftlb.)

2.2 Seal threaded joint securing tie rod to wheel bearing housing with wax as shown in -Illustration- . Use Pfinder AP14/4 for this (see Parts Catalogue - PET)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

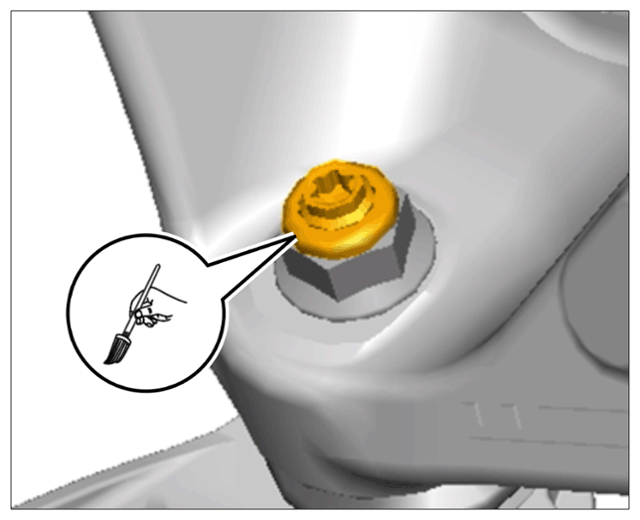

Applying wax on marked area (shown on threaded joint securing lower trailing arm)

Install cover on lower trailing arm -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

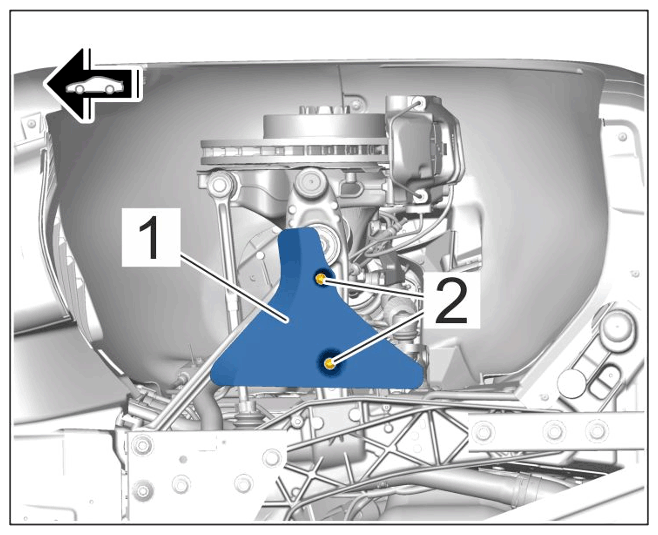

Mounting for cover on lower trailing arm
1. 3.1 Tighten screws -2- . > Tightening torque 10 Nm (7.5 ftlb.)
