Technical Values
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Item 2: | |||||
| Mounting saddle to body | Hexagon-head bolt, M8x25 | Tightening torque | 23 Nm (17 ftlb.) | ||
|

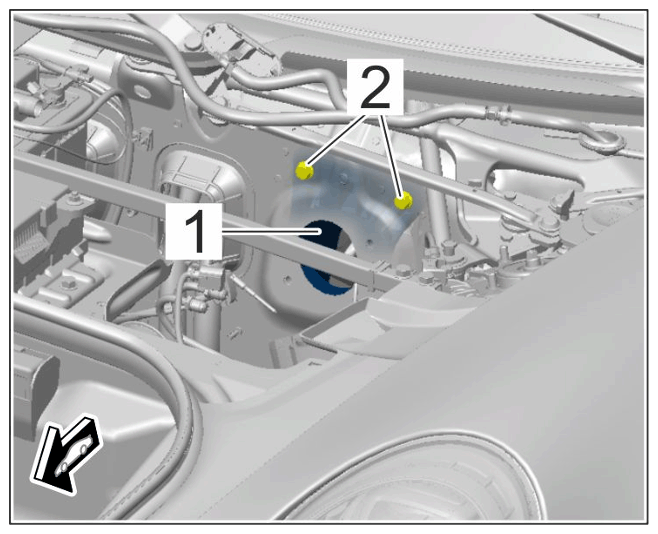

Fastening mounting saddle, top |
|||||
| Porsche Doppelkupplung (PDK) mounting saddle to body | Item 2: Hexagon nut, M8 | Tightening torque | 23 Nm (17 ftlb.) | ||
|

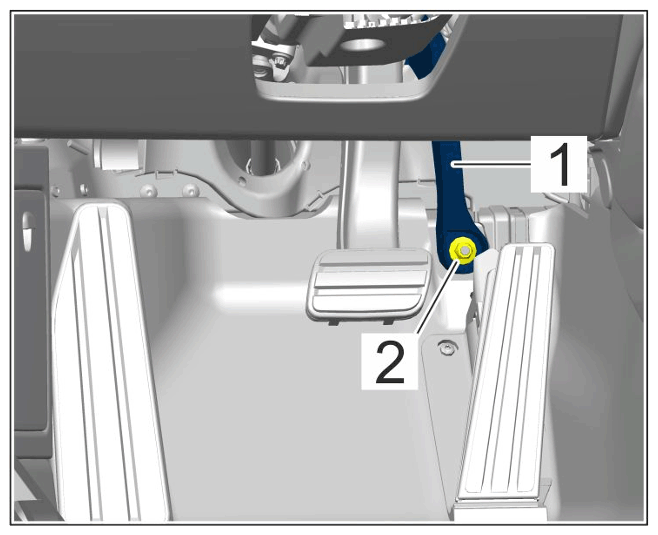

Fastening mounting saddle, bottom |
