Removing Mounting Saddle
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

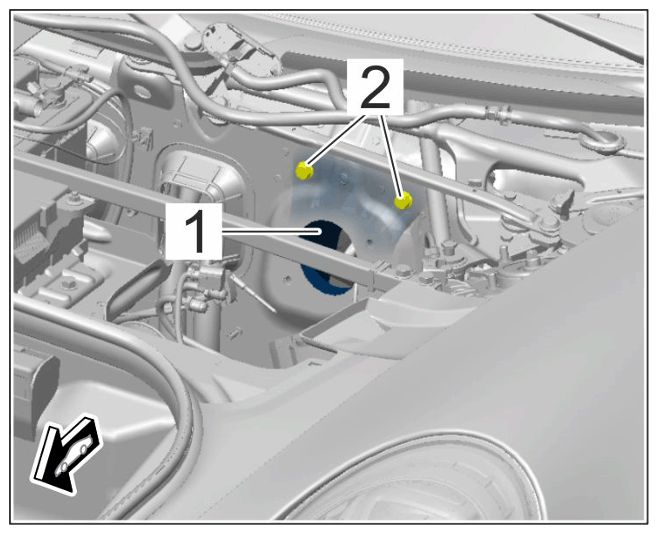

- Remove screws -2-
to separate mounting saddle -1-
from firewall upper section.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws on mounting saddle

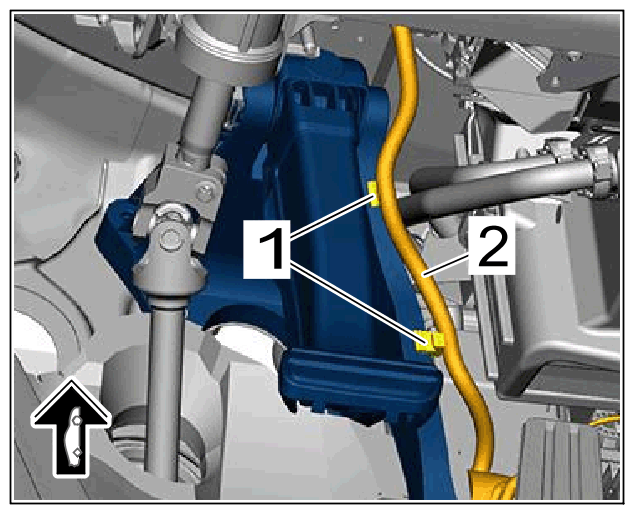

- Unclip clips -1-
and move electric line -2-
aside.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Clips
- Remove mounting saddle -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

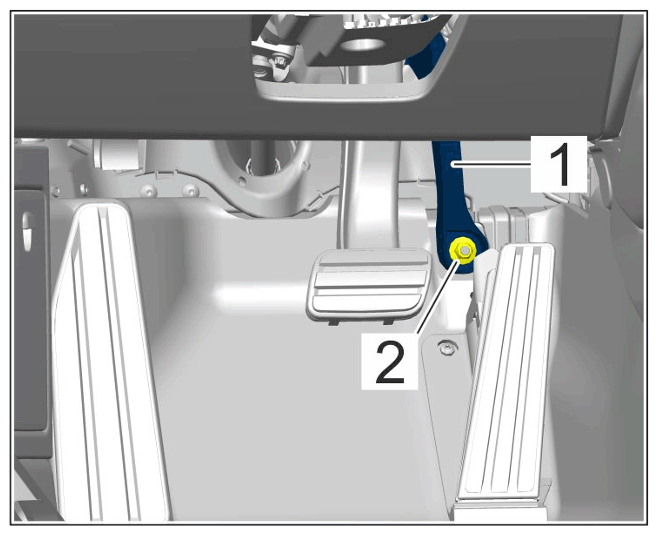

Mounting saddle nut
- 3.1
Unscrew nut -2-.
- 3.2
Guide mounting saddle -1-
out of the footwell.
