Preliminary Work

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove front footwell outlet vent (driver's side).
> WM, 805519 REMOVING AND INSTALLING FRONT FOOTWELL OUTLET VENT

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

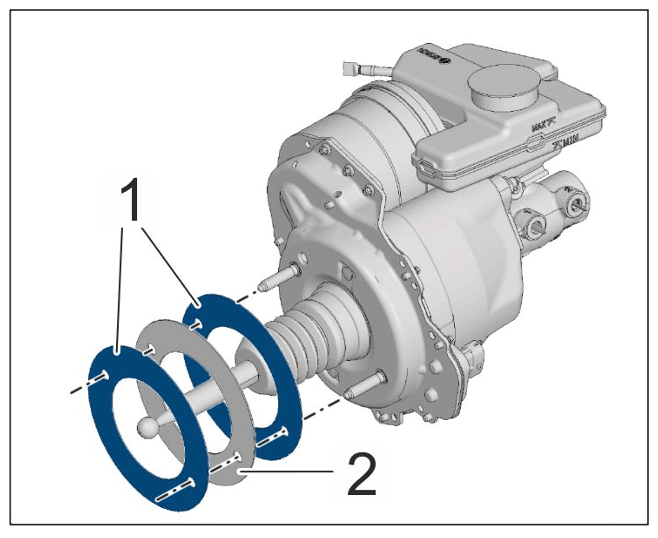

Brake booster seals

1 Seals

2 Spacer
- The brake booster must be removed so that seals -1- can be replaced.
- As soon as the brake booster is removed from the firewall, the seals -1- must be replaced.
Remove brake booster.
477019 REMOVING AND INSTALLING BRAKE BOOSTER
