Installing Mounting Saddle

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Move mounting saddle -1- into installation position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting saddle nut
1. 1.1 Fit nut -2- , but do not tighten yet.
Screw in and tighten screws -2- .
> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on mounting saddle
Tighten nut -2- .
> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

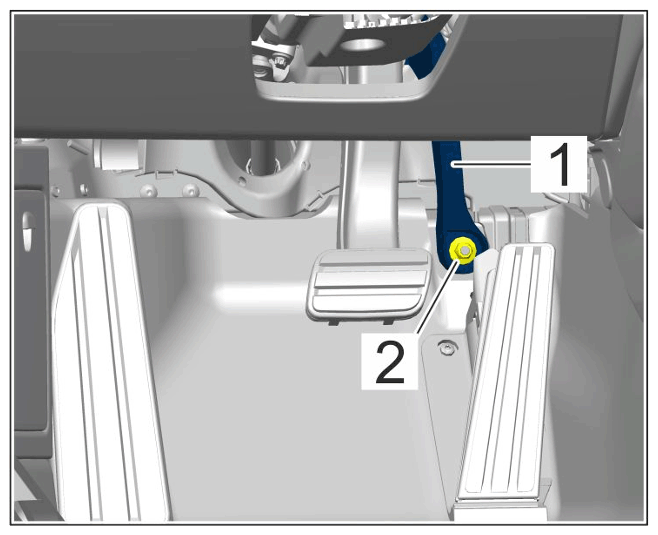

Lower mounting saddle nut

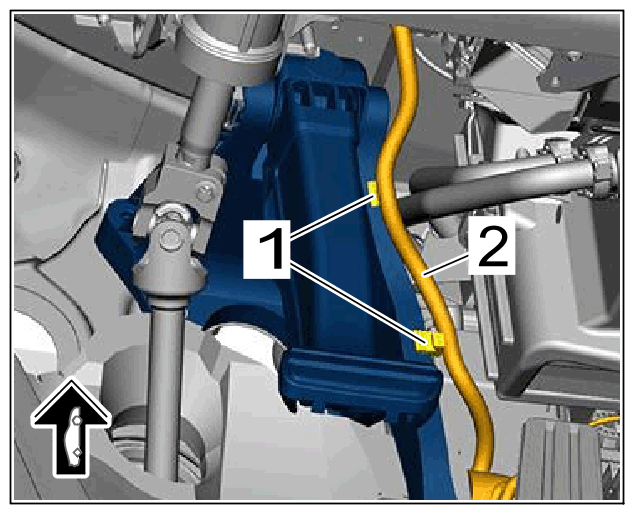

Position electric line -2- and clip in clips -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips
