WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

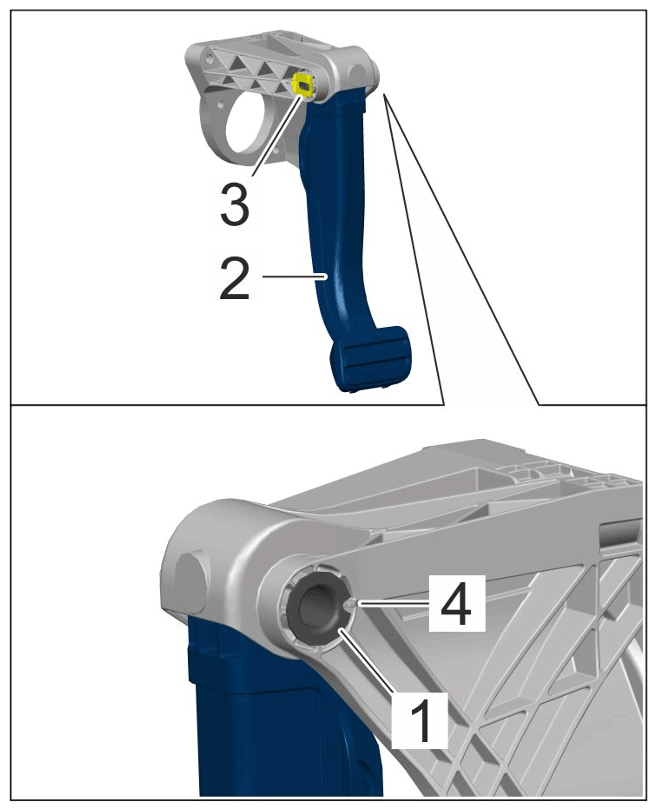

Remove pedal bearing shaft -1-
from the brake pedal -2-.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pedal bearing shaft
1.1
Loosen lock -3-
.
1.2
pull pedal bearing shaft -1-
out to the right.
