Installing Brake Pedal
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Fit pedal bearing shaft -1-
on the brake pedal -2-.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

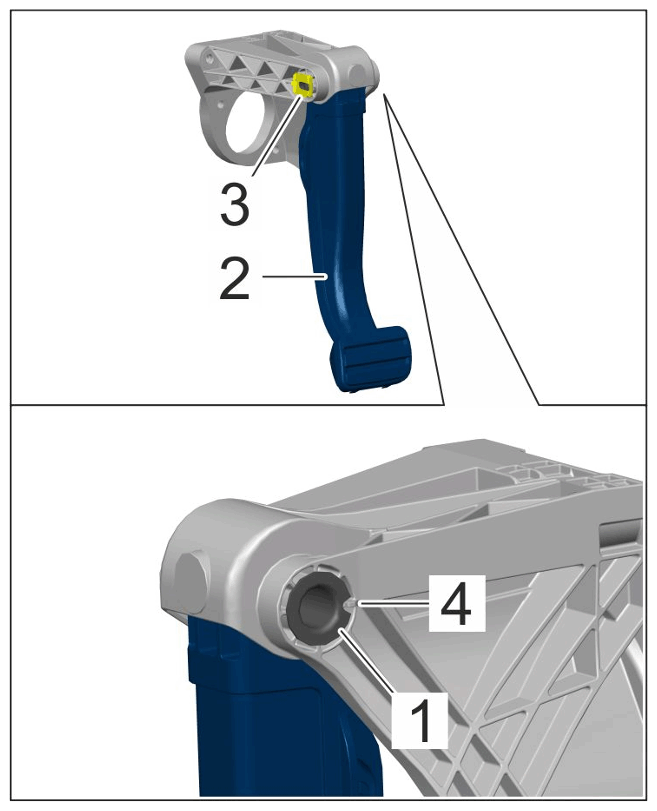

Pedal bearing shaft
- 1.1
Align pedal bearing shaft -1-
in accordance with the marking -4-
and guide it in.
- 1.2
Secure the lock -3-.
