Vent Line On Turbocharger And Holder On Cylinder Head

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

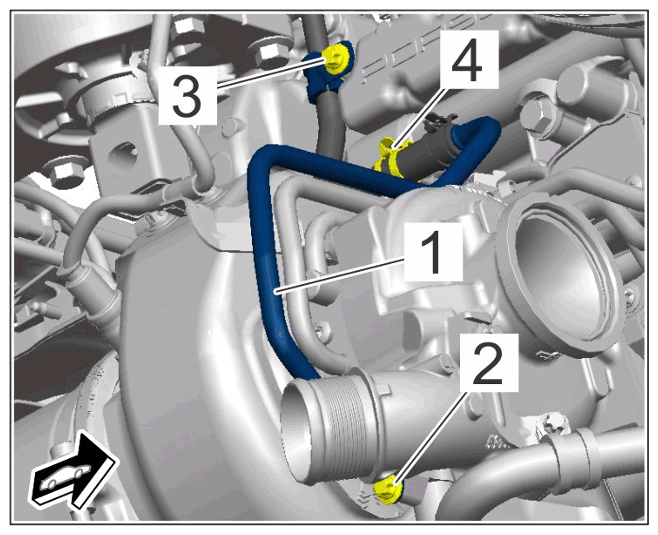

Fig 1: Vent Line On Turbocharger Components Location With Torque Specification - Bank 4-6

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line on turbocharger, bank 4-6

1	Turbocharger vent line
2	Screw securing vent line to turbocharger > Tightening torque 10 Nm (7.5 ftlb.)
3	Screw securing vent line holder to cylinder head cover > Tightening torque 10 Nm (7.5 ftlb.)
4	Spring band clamp

Fig 1: Vent Line On Turbocharger Components Location With Torque Specification - Bank 4-6

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line on turbocharger, bank 4-6

1	Turbocharger vent line
2	Screw securing vent line to turbocharger > Tightening torque 10 Nm (7.5 ftlb.)
3	Screw securing vent line holder to cylinder head cover > Tightening torque 10 Nm (7.5 ftlb.)
4	Spring band clamp
