Tank Vent Line On Turbochargers

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

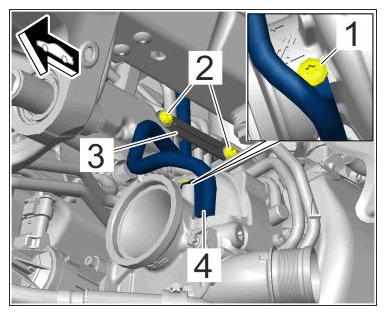

Fig 1: Tank Vent Line Components Location With Torque Specification - Bottom

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent line, bottom

1	Screw, M6 - tank vent line > Tightening torque 10 Nm (7.5 ftlb.) -1-
2	Screws on turbocharger vent line holder
3	Holder
4	Tank vent line connection on turbocharger

Fig 1: Tank Vent Line Components Location With Torque Specification - Bottom

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tank vent line, bottom

1	Screw, M6 - tank vent line > Tightening torque 10 Nm (7.5 ftlb.) -1-
2	Screws on turbocharger vent line holder
3	Holder
4	Tank vent line connection on turbocharger
