Kinematics On Electronic Adjuster

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Pull Rod Of Kinematics On Electronic Adjuster Components Location With Torque Specification
G15508608Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull rod of kinematics on electronic adjuster

1 Adjusting nut > Tightening torque 6 Nm
2 Lock nut - counter when tightening the adjusting nut!
3 Pull rod


Fig 1: Pull Rod Of Kinematics On Electronic Adjuster Components Location With Torque Specification

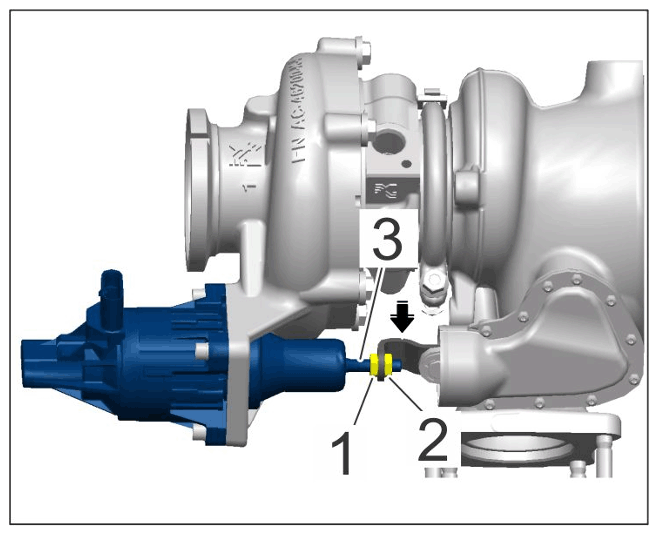

G15508660Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull rod of kinematics on electronic adjuster

1 Adjusting nut > Tightening torque 6 Nm
2 Lock nut - counter when tightening the adjusting nut!
3 Pull rod
