Electronic Adjuster On Turbocharger

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

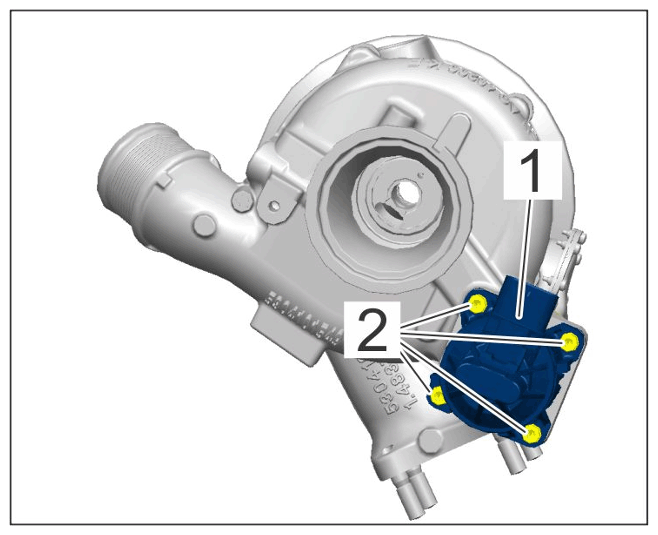

Fig 1: Electronic Adjuster On Turbocharger Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electronic adjuster on turbocharger

1	Electronic adjuster
2	Screw, M5 x 20 > Tightening torque 4.3 Nm (3.2 ftlb.) +/- 0.5 Nm (0.35 ftlb.)

Fig 1: Electronic Adjuster On Turbocharger Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electronic adjuster on turbocharger

1	Electronic adjuster
2	Screw, M5 x 20 > Tightening torque 4.3 Nm (3.2 ftlb.) +/- 0.5 Nm (0.35 ftlb.)
