Overview Of Components In Engine Compartment

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

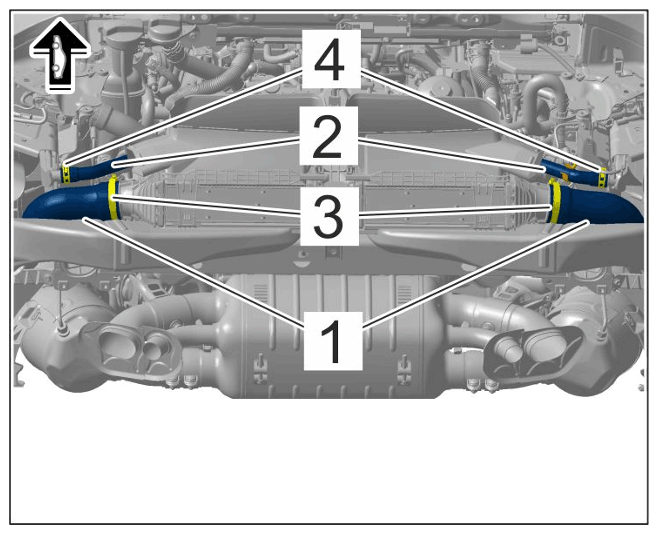

Fig 1: Pressure Hose And Recirculating Air Line Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure hose and recirculating air line

1	Pressure hose - use Kluberplus Gel for assembly
2	Wastegate hose
3	Screw-type clamp > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
4	Spring band clamp

Location	Description	Type	Basic value	Tolerance
Screws securing side pressure pipe to air cleaner housing	Item 3	Tightening torque	2.2 Nm (1.6 ftlb.)

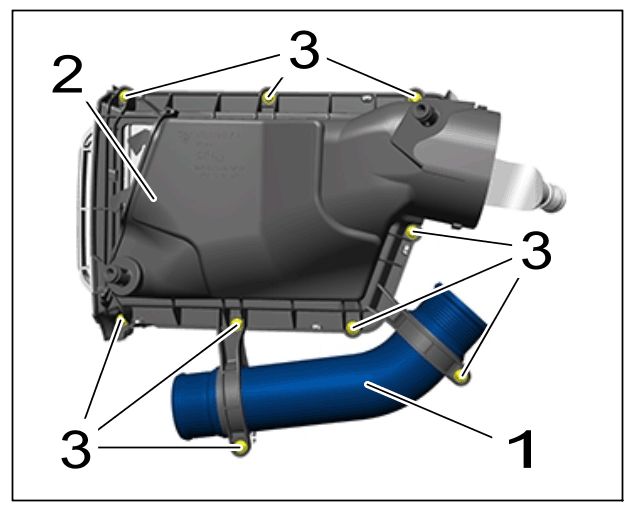

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Pressure pipe (at the side)

Fig 1: Pressure Hose And Recirculating Air Line Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure hose and recirculating air line

1	Pressure hose - use Kluberplus Gel for assembly
2	Wastegate hose
3	Screw-type clamp > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
4	Spring band clamp

Location	Description	Type	Basic value	Tolerance
Screws securing side pressure pipe to air cleaner housing	Item 3	Tightening torque	2.2 Nm (1.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Pressure pipe (at the side)
